750mm Diamond Saw Blade
Customize diamond blade
When place order for saw blades please inform the following:
Price: US$180
750mm Laser Welded Diamond Road Cutting Blades
Product Overview: 750mm Laser Welded Diamond Road Cutting Blades for Floor Saws
Our 750mm (30-inch) laser-welded diamond road cutting blade is a premium cutting tool engineered for high-performance applications in construction and road maintenance. It is specifically designed for use with heavy-duty floor saws to tackle the most demanding tasks, including general concrete cutting, precast slab segmentation, renovation of old roads and construction of new ones, as well as grooving on various hard and brittle materials.
The blade’s construction is based on a two-component system: a high-tensile steel core and the diamond segments. The steel core provides the structural integrity and stability necessary for precise, vibration-free operation. The diamond segments, which are bonded to the core via advanced laser welding, constitute the cutting part of the blade. These segments are consumed during the cutting process, while the steel core remains intact. The cutting action is achieved through the diamond grit—the hardest known material—embedded within a metal matrix. As the blade rotates, these exposed diamond particles grind through the material, while the matrix wears away to continuously reveal fresh, sharp diamonds, ensuring a consistently high cutting rate and an extended blade life.
Specifications:
Technical Specifications
- Diameter: 750 mm (30 inches)
- Segment Thickness: 4.8 mm or 5.0 mm
- Segment Height: 10 mm, 12 mm, or 15 mm (customizable)
- Inner Bore (Arbor Hole): Standard sizes include 25.4 mm (1 inch), 50 mm, 60 mm, and 80 mm. Custom bore sizes are available upon request.
Detailed Specifications for 750mm Blades:
| Inch | Diameter (mm) | Segment Length (mm) | Segment Thickness (mm) | Segment Height (mm) | Segment Number (pcs) |
|---|---|---|---|---|---|
| 30″ | 750 | 40 | 4.8/5.0 | 10 | 46 |
| 30″ | 750 | 40 | 4.8/5.0 | 12 | 46 |
| 30″ | 750 | 40 | 4.8/5.0 | 15 | 46 |
Other Available Diamond Saw Blade Sizes We Manufacture:
| OD (mm) | Length (mm) | Thickness (mm) | Height (mm) | Number (pcs) | Bore (mm) |
| 350 | 40 | 3.2 | 10/12/15 | 24 | 25.4 |
| 400 | 40 | 3.4 | 10/12/15 | 28 | 25.4 |
| 500 | 40 | 4.0 | 10/12/15 | 36 | 25.4 |
| 600 | 40 | 4.4 | 10/12/15 | 42 | 25.4 |
| 650 | 40 | 4.8/5.0 | 10/12/15 | 42 | 25.4 |
| 800 | 40 | 4.8/5.0 | 10/12/15 | 46 | 25.4 |
| 900 | 40 | 4.8/5.0 | 10/12/15 | 52 | 25.4 |
| 1200 | 40 | 4.8/5.0 | 10/12/15 | 68 | 25.4 |
| 1500 | 40 | 4.8/5.0 | 10/12/15 | 90 | 25.4 |
Key Features & Advantages
1) 100% Laser Welding Technology: Ensures an exceptionally strong bond between the segments and the steel core, offering superior reliability under high-impact conditions and preventing segment loss.

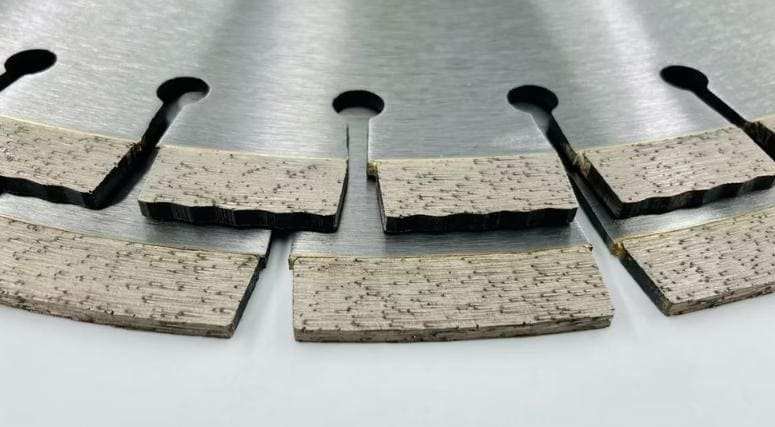

2) Undercut Protection Segments: The unique segment design features a reinforced base that shields the steel core from abrasive wear, significantly enhancing the blade’s overall service life when cutting aggressive materials like reinforced concrete.

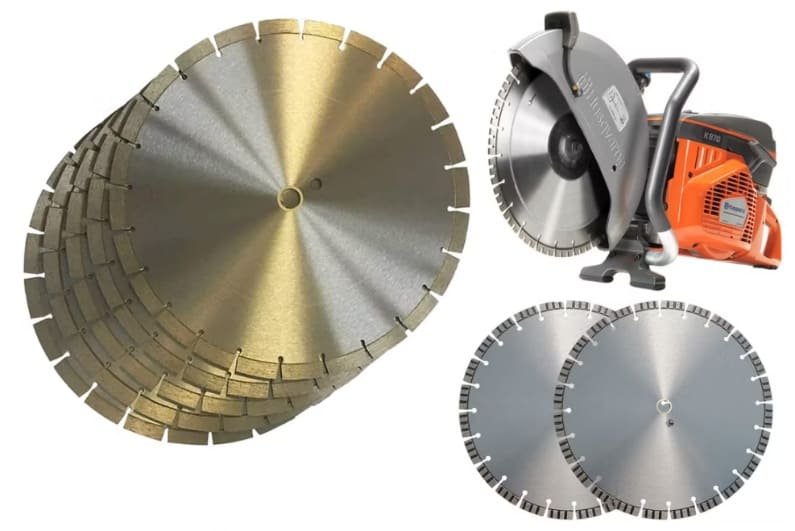

3) Broad Machine Compatibility: This blade is engineered to be compatible with a wide range of cutting equipment, including petrol-powered cutters, bench saws, and professional floor saws, providing great versatility for different job sites.
4) Optimized Slot Design: The availability of Narrow U or key slots increases the segment width for a longer lifespan. Alternatively, Wider U slots are effective in preventing material buildup and clogging, especially when cutting asphalt, ensuring smoother and more efficient operation.
5) Dual-Purpose Cutting: Suitable for both dry and wet cutting methods, making it highly adaptable to different site conditions and regulations. It efficiently cuts through reinforced concrete, aggregate concrete, hot rolled asphalt, plain asphalt, asphalt overlays on concrete, and green concrete.
6) Globally Trusted Quality: Our blades have been proven reliable in international markets, with consistent exports to regions including Taiwan, Australia, Hong Kong, Poland, Singapore, Thailand, the USA, and more, earning a reputation for durability and performance.

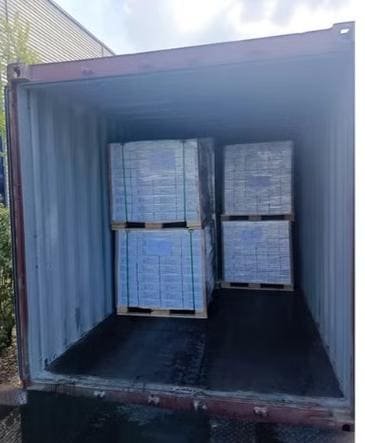

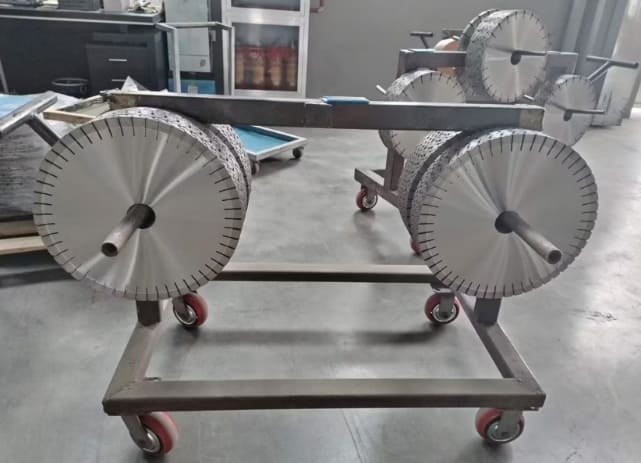

Packing and Shipping
5pcs 800mm laser welded wall saw blades are packed in one plywood, gross weight per plywood is limited within 90kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
Hot sell product
Welcome to call us
Contact Us to get quotation
Working Time: 8:00~17:00 Monday to Friday.
Applications:

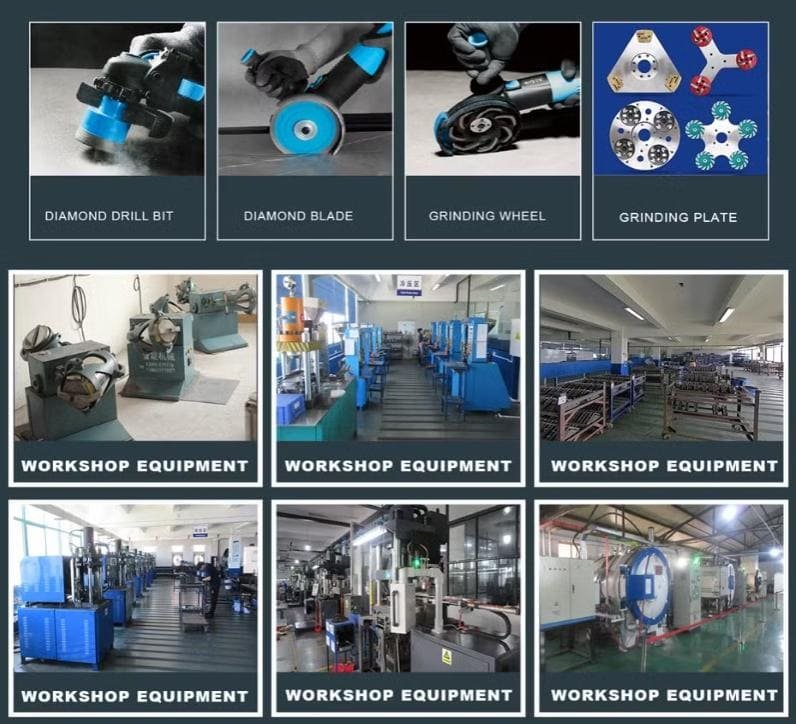

Factory:

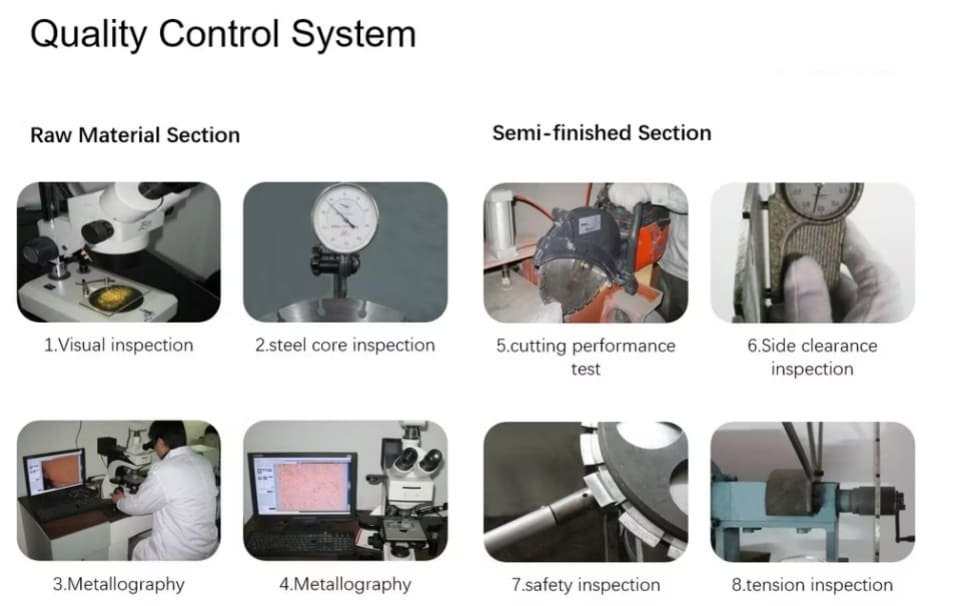

Quality Ensurement:
