Diamond Corer

Diamond Corer

A diamond corer is a professional multi-functional drilling and core-taking machine equipped with diamond drilling tools, specially designed for rock sampling, concrete testing and engineering hole-drilling tasks, delivering flexible operation, high core recovery rate and strong environmental adaptability across diverse construction and exploration scenarios. As a comprehensive core drilling device that integrates power transmission, tool operation and intelligent control, the diamond corer differs greatly from ordinary single-function drills. It combines stable power output, professional supporting drilling tools and flexible structural design to adapt to light daily drilling and deep geological exploration projects. Whether for indoor decoration punching, road structure detection or field mountain geological sampling, the diamond corer can maintain stable working performance, becoming a universal and essential core equipment in engineering construction and geological industries.

What core structures and configurations make up a standard diamond corer?

A diamond corer is equipped with a graded power system covering multiple power ranges to fully match drilling tasks of different depths and working intensities. Most conventional civilian and small engineering diamond corers adopt power units ranging from 3.8KW to 12KW, which provide stable and sufficient power for shallow hole drilling, concrete detection and conventional building hole opening. These medium and small power models feature low energy consumption and stable output, perfectly meeting daily low-load operation demands. For professional deep geological exploration and mining drilling scenarios that require ultra-high power support, high-end customized diamond corers are equipped with 45KW high-power motors or diesel power units. The powerful power output can overcome ultra-high drilling resistance in deep hard rock strata, supporting long-distance deep drilling operations without power insufficiency, realizing seamless coverage from shallow light-load to deep heavy-load drilling tasks.

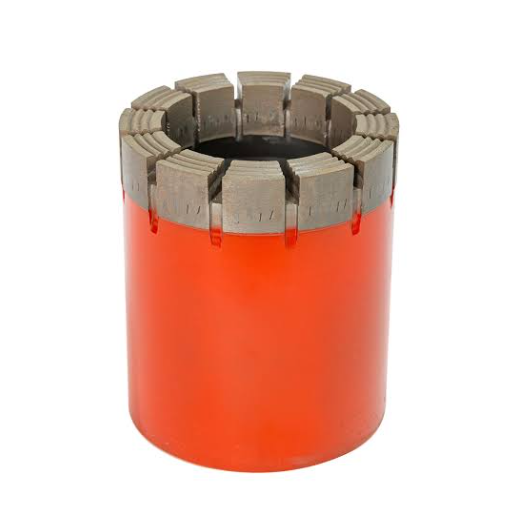

The complete tool system of a diamond corer consists of supporting diamond core bits, core barrels and matched drill rods, which work together to ensure complete collection and safe extraction of cylindrical core samples. Each component of the supporting drilling tool set has a clear division of labor and precise matching performance. The diamond core bit undertakes the core cutting and penetrating work to break rock and concrete materials. The hollow core barrel stores complete core samples generated during drilling, effectively protecting the internal structure of cores from extrusion damage. The connected drill rods transmit power and extend drilling depth steadily. The integrated tool matching structure enables the equipment to continuously obtain complete and undamaged cylindrical core samples during operation, avoiding core fragmentation and missing samples caused by mismatched tools, and laying a foundation for accurate subsequent sample analysis.

Diamond corers adopt differentiated fuselage structural designs for different usage scenarios, including portable handheld models and tracked mobile engineering models. Small household and light engineering corers feature a lightweight integrated handheld structure, which is compact in size, easy to carry and labor-saving to operate. It is suitable for scattered short-distance operation and indoor narrow-space construction, with flexible and convenient operation. In contrast, large professional engineering and exploration diamond corers are equipped with sturdy tracked mobile chassis. The stable tracked structure can adapt to complex terrain such as mountain slopes, rugged road surfaces and mine tunnel ground, realizing stable long-distance displacement. It solves the problem of difficult movement of traditional fixed drilling equipment in field complex environments, greatly improving the mobility and on-site adaptability of large-scale drilling operations.

Most modern diamond corers are fitted with adjustable speed control systems, with a wide speed range covering 25RPM to 1850RPM to adapt to different drilling materials and working conditions. Different drilling media have completely different hardness, density and cutting resistance, requiring matched rotational speed to ensure drilling efficiency and hole-forming quality. The precise speed adjustment device of the diamond corer allows operators to freely switch low, medium and high gears according to actual needs. Low speed is suitable for high-hardness granite, thick concrete and deep rock drilling to avoid tool damage caused by excessive speed. Medium and high speeds apply to low-resistance materials such as ordinary brick walls and soft rock strata to accelerate drilling progress. The flexible parameter adjustment capability enables the equipment to maintain the optimal working state for diverse materials.

What core performance highlights does a professional diamond corer feature?

High-end professional exploration diamond corers adopt full hydraulic transmission control system, achieving stepless adjustment of drilling pressure and rotational speed while greatly reducing manual operation intensity. Traditional ordinary drilling equipment relies on mechanical hard transmission, with fixed parameters and labor-intensive operation, and long-term construction will easily cause operator fatigue. The full hydraulic design of advanced diamond corers realizes flexible and stable power transmission. Users can fine-tune drilling pressure and rotation speed in real time according to stratum changes and drilling progress, without frequent mechanical gear shifting and manual pressure adjustment. The whole operation process is smooth and labor-saving, effectively reducing physical consumption for long-time and high-intensity continuous construction, and significantly improving construction comfort and continuous working capacity.

Diamond corers have excellent multi-angle drilling capability, supporting vertical downward, horizontal, upward and other directional drilling to adapt to special and complex working conditions. Most ordinary drilling devices can only complete single vertical downward drilling, which is difficult to cope with special-position sampling and hole-opening tasks in actual engineering. The optimized mechanical structure of diamond corers allows the fuselage and drill rod angle to be adjusted freely. It can stably complete horizontal wall drilling, upward tunnel arch coring and special-angle hole opening in mine tunnels and confined spaces. This multi-angle operation advantage breaks the limitation of single drilling direction of traditional equipment, enabling normal construction in various complex spatial positions and greatly expanding the application scope of drilling operations.

Equipped with a professional single-action double-tube core-taking mechanism, diamond corers can maintain an ultra-high core recovery rate of over 95% even in broken and loose rock strata, far exceeding the sampling quality of ordinary drilling rigs. Broken strata, loose soil layers and weathered rock layers are prone to core collapse and loss during drilling, resulting in incomplete samples and failed detection. The single-action double-tube structure of the diamond corer can effectively isolate external drilling fluid impact and stratum extrusion pressure. It stably wraps and protects internal core samples during drilling and lifting, avoiding fragmentation and scattering of loose cores. Whether in complete hard rock or broken soft strata, it can obtain intact and continuous core samples, ensuring the authenticity and comprehensiveness of geological and engineering detection data.

Many professional diamond corers support dual power switching function, with strong environmental adaptability free from on-site power supply constraints. Ordinary electric drilling equipment can only rely on external power supply, making it impossible to construct in remote mountainous areas, field exploration sites and mine tunnels without stable power facilities. The dual-power diamond corers can freely switch between electric power and diesel power modes. In venues with complete power supply, electric drive can be used for energy-saving and low-noise operation. In field environments without power supply, the diesel power unit can be started independently to support normal drilling work. This flexible power switching design enables the equipment to adapt to various field complex environments, realizing unrestricted all-site construction.

What core application scenarios are suitable for a diamond corer?

Diamond corers are core equipment for core sampling in metal mines and mountain engineering geological exploration, capable of obtaining complete rock stratum samples at depths of hundreds of meters. In geological survey, mineral resource exploration and mountain infrastructure pre-construction investigation, professional personnel need to obtain underground rock core samples to analyze stratum structure, rock hardness, mineral distribution and geological stability. High-power diamond corers can penetrate deep underground strata stably, continuously extracting complete layered core samples. These standard and intact samples provide accurate basic data for resource reserve evaluation, geological hazard assessment and engineering design formulation, supporting the smooth progress of professional geological exploration work.

They are widely used in structural core-taking detection of concrete pavements, bridges and buildings, serving as an important tool for testing engineering structural strength and safety indicators. In road construction acceptance, bridge safety inspection and old building structure detection, it is necessary to sample concrete structural layers to verify compressive strength, structural compactness and overall stability. The precise drilling performance of diamond corers can obtain standard cylindrical concrete core samples without damaging the overall structure of buildings and pavements. Through professional detection and analysis of core samples, engineering personnel can accurately judge structural safety, service life and construction quality, providing objective basis for engineering acceptance, maintenance and renovation.

Diamond corers are commonly applied in building construction projects for through-hole drilling of air-conditioning pipelines, guardrail fixation and mechanical installation. Modern architectural decoration and municipal construction require a large number of reserved holes for water and electricity pipelines, air-conditioning ventilation and facility fixation. Diamond corers have strong material adaptability, capable of stably drilling through reinforced concrete, solid brick walls, hollow brick walls and various building structural layers. The hole-forming process is neat with no obvious vibration damage to the surrounding building structure. It meets the precision opening demands of indoor decoration, outdoor municipal supporting facilities and building auxiliary construction, ensuring standard and efficient construction progress.

This equipment is also widely used in the processing and core-taking opening of hard stone materials such as granite and marble. In stone factory processing and landscape stone engineering construction, it is often necessary to drill and core various high-hardness decorative stones. The diamond corer equipped with professional stone drill bits can efficiently penetrate dense and hard stone materials, completing standard core-taking and fixed-point opening tasks. The drilling process features low vibration and neat hole edges, avoiding stone cracking and edge chipping. It is suitable for stone countertop processing, landscape stone shaping and decorative stone customization, fully meeting the high-precision processing requirements of the stone industry.

What key selection and usage guidelines should be followed for a diamond corer?

Reasonable power matching according to construction types and drilling depths is the primary principle for selecting a suitable diamond corer. For shallow-hole operations such as household decoration punching, road surface detection and conventional building wall opening, small and medium-power models with 3KW to 12KW are fully competent. These lightweight low-power devices have low energy consumption and flexible operation, meeting the demands of daily light-load construction. For professional deep mining exploration, deep stratum sampling and long-distance core-taking tasks that require high power and strong penetration, users should prefer large tracked corers with power above 45KW. High-power equipment can stably cope with high-resistance deep rock drilling, avoiding insufficient power, slow drilling speed and incomplete core sampling in deep operations.

Users need to select the equipment mobility type according to the operation scope and on-site terrain conditions of the project. For scattered small-scale operations such as indoor home improvement, local road detection and short-distance drilling, portable handheld diamond corers are the best choice. They are lightweight, easy to carry and flexible to deploy, suitable for frequent position switching of small tasks. For field mountain exploration, mine construction and engineering projects requiring long-distance displacement and complex terrain operation, stable tracked corers must be selected. The tracked chassis adapts to rugged mountain roads, uneven construction sites and muddy terrain, realizing safe and stable equipment movement, greatly improving construction efficiency in field complex environments.

Standardized operation specifications are crucial to improving core-taking efficiency and extending the service life of diamond corers. Before starting formal drilling, operators must fix the equipment firmly to avoid fuselage displacement and shaking during operation, which may cause drilling deviation and tool wear. During the drilling process, it is necessary to always maintain the coaxiality of the drill rod and the drilling hole, preventing severe left-right shaking of the drill rod. Unstable operation will not only lead to skewed holes and incomplete core samples, but also cause severe friction and impact wear of drill bits and drill rods, accelerating equipment aging. Standard and stable operation can maximize drilling efficiency, ensure sampling quality and effectively reduce equipment failure rate and loss.

Summary

In conclusion, a diamond corer is a multi-functional professional drilling and core-taking device with graded power configuration, complete supporting tool system, differentiated fuselage structure and adjustable speed control system. It boasts full hydraulic flexible control, multi-angle all-directional operation capability, ultra-high core recovery rate and dual-power environmental adaptation, covering professional geological exploration, engineering structural detection, building construction opening and hard stone processing scenarios. Reasonable power and mobility selection matching construction demands and standardized operating norms are key to giving full play to equipment performance. With strong versatility, stable performance and wide environmental adaptability, diamond corers have become indispensable core equipment in modern engineering construction and geological exploration industries.
