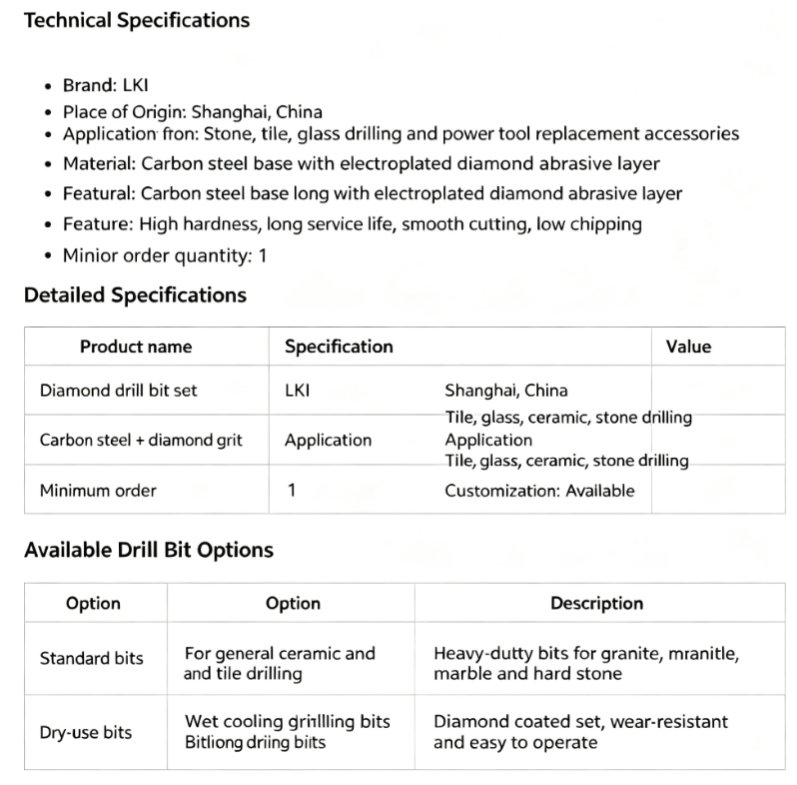

diamond core bit

diamond core bit

A diamond core bit, also known as diamond coring bit or diamond rock core bit, is a special drilling tool equipped with natural or synthetic diamond cutting teeth designed to extract intact rock cores during exploration drilling, and it was formally included in the first edition of Petroleum Nomenclature in 1994.

Basic Definition

The core purpose of a diamond core bit is to cut an annular groove in rock formations instead of breaking all underground rock into debris. This special working principle allows the cylindrical rock inside the annular cut to remain intact and be collected as rock core samples for geological analysis. It is fundamentally different from ordinary full-hole drilling bits that crush rock completely. Ordinary drill bits destroy rock structure while drilling, making it impossible to observe original stratigraphic characteristics. The diamond core bit focuses on protecting rock samples, which is the core value that cannot be replaced in geological exploration work.

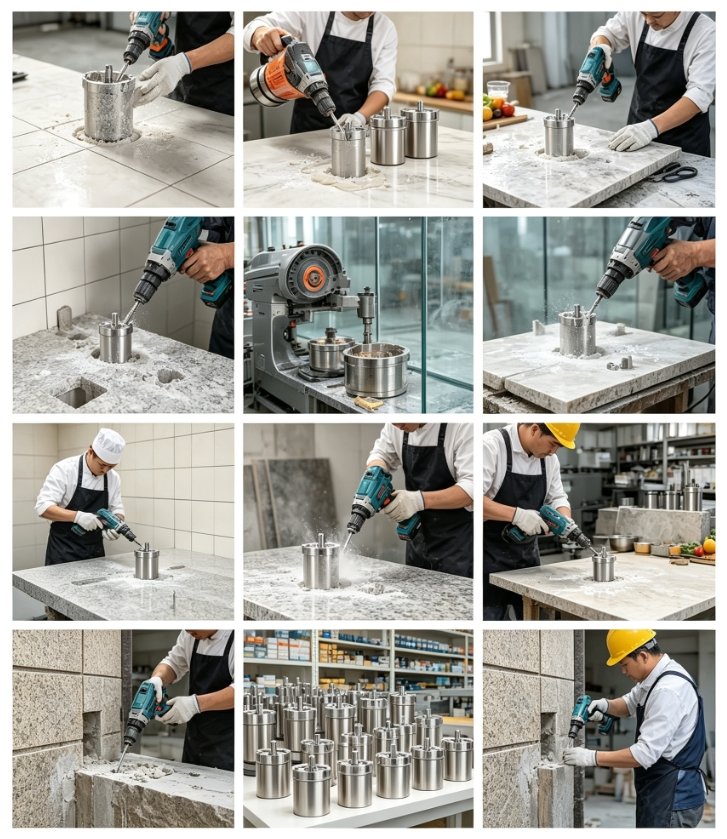

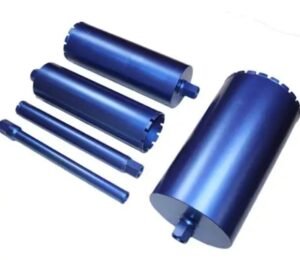

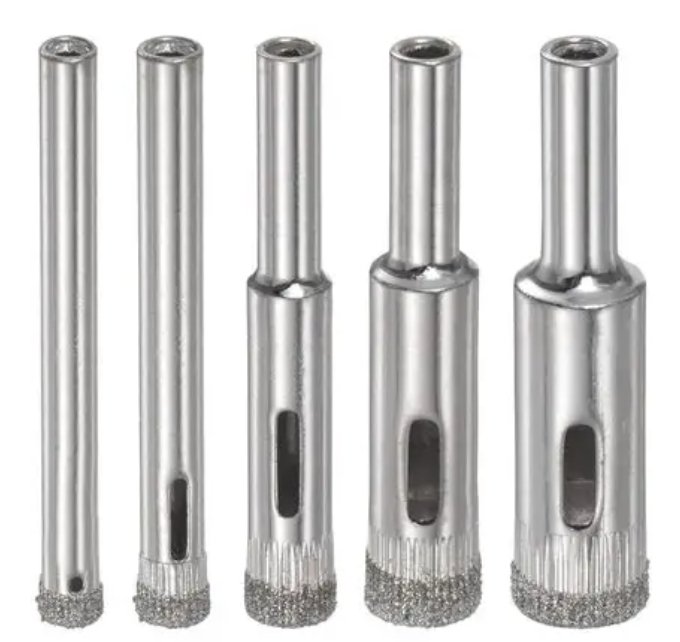

The basic structure of a standard diamond core bit consists of a metal base body and diamond cutting units fixed on the working end. The base body provides structural strength and connects with the drill string, while exposed diamond grains rely on ultra-high hardness to continuously grind rock. During drilling, drilling fluid circulates through internal flow channels. The fluid takes away frictional heat, washes away rock powder, and prevents the diamond cutting layer from overheating and premature failure. This matched structure ensures stable continuous drilling for long-distance underground operations.

The birth and popularization of diamond core bits solved a long-standing industry pain point. Early hard formation drilling relied on alloy bits with limited hardness. Those tools wore quickly when encountering dense hard rock, and they could hardly obtain complete rock cores. After diamond materials were applied to coring tools, exploration teams gained reliable equipment for deep and hard strata. It gradually became the standard core tool for global geological sampling projects, covering shallow surface surveys all the way to ultra-deep scientific drilling thousands of meters underground.

Core Classification

Classified according to diamond raw material sources, diamond core bits fall into natural diamond core bits and synthetic diamond core bits. Natural diamond bits adopt mined natural diamond crystals as cutting units. Natural diamond features extremely high thermal stability and compressive resistance, so it performs steadily under ultra-high temperature and high-pressure ultra-deep drilling environments. However, natural diamond resources are limited, resulting in higher production costs, so these bits are mostly reserved for high-standard scientific drilling and ultra-deep well special tasks. Synthetic diamond core bits use artificially synthesized polycrystalline diamond particles. The raw material supply is stable, costs are controllable, and performance can be adjusted according to formation conditions. It meets most engineering exploration demands and has become the most widely used type on the market.

When divided by diamond embedding style, there are surface-set diamond bits and impregnated diamond bits. Surface-set bits fix larger single diamond crystals on the surface of the bit matrix. A large number of sharp diamond points are exposed directly to contact rock. The cutting speed is fast, and they work best within medium-hard, relatively uniform rock formations. Once the exposed diamond crystals wear out, the cutting capacity declines obviously, so they fit medium-depth drilling projects with stable formation hardness. Impregnated diamond bits mix fine diamond particles evenly inside the metal matrix. As the matrix slowly wears down during drilling, new diamond grains keep exposing continuously. This structure delivers lasting wear resistance. It can handle hard and highly abrasive strata, where surface-set bits would wear out rapidly. It is the preferred choice for drilling into hard rock, fractured complex formations.

In terms of coring structure design, common types include single-tube core bits, double-tube core bits, and wireline retrievable core bits. Single-tube core bits feature a simple structure and low manufacturing cost. They are suitable for shallow drilling and relatively complete rock layers. Yet rock cores easily suffer erosion and damage from flushing fluid, so the core recovery rate drops in broken strata. Double-tube core bits add an independent inner pipe to protect rock cores. The drilling fluid flows between the outer pipe and inner pipe without directly washing sampled rock, greatly improving core integrity in fractured formations. Wireline retrievable core bits cooperate with wireline coring systems. Operators can retrieve rock cores through an inner assembly without lifting the entire drill string out of the borehole, greatly shortening repeated tripping time in deep wells.

Performance Features

Classified according to diamond raw material sources, diamond core bits fall into natural diamond core bits and synthetic diamond core bits. Natural diamond bits adopt mined natural diamond crystals as cutting units. Natural diamond features extremely high thermal stability and compressive resistance, so it performs steadily under ultra-high temperature and high-pressure ultra-deep drilling environments. However, natural diamond resources are limited, resulting in higher production costs, so these bits are mostly reserved for high-standard scientific drilling and ultra-deep well special tasks. Synthetic diamond core bits use artificially synthesized polycrystalline diamond particles. The raw material supply is stable, costs are controllable, and performance can be adjusted according to formation conditions. It meets most engineering exploration demands and has become the most widely used type on the market.

When divided by diamond embedding style, there are surface-set diamond bits and impregnated diamond bits. Surface-set bits fix larger single diamond crystals on the surface of the bit matrix. A large number of sharp diamond points are exposed directly to contact rock. The cutting speed is fast, and they work best within medium-hard, relatively uniform rock formations. Once the exposed diamond crystals wear out, the cutting capacity declines obviously, so they fit medium-depth drilling projects with stable formation hardness. Impregnated diamond bits mix fine diamond particles evenly inside the metal matrix. As the matrix slowly wears down during drilling, new diamond grains keep exposing continuously. This structure delivers lasting wear resistance. It can handle hard and highly abrasive strata, where surface-set bits would wear out rapidly. It is the preferred choice for drilling into hard rock, fractured complex formations.

In terms of coring structure design, common types include single-tube core bits, double-tube core bits, and wireline retrievable core bits. Single-tube core bits feature a simple structure and low manufacturing cost. They are suitable for shallow drilling and relatively complete rock layers. Yet rock cores easily suffer erosion and damage from flushing fluid, so the core recovery rate drops in broken strata. Double-tube core bits add an independent inner pipe to protect rock cores. The drilling fluid flows between the outer pipe and inner pipe without directly washing sampled rock, greatly improving core integrity in fractured formations. Wireline retrievable core bits cooperate with wireline coring systems. Operators can retrieve rock cores through an inner assembly without lifting the entire drill string out of the borehole, greatly shortening repeated tripping time in deep wells.

Performance Features

Diamond core bits possess ultra-high wear resistance originating from the inherent hardness of industrial diamond. Most metal and alloy materials cannot withstand continuous friction grinding against dense hard rock. Diamond remains stable under long-term high-load rotation, maintaining consistent rock-breaking capacity even after hours of uninterrupted drilling. For exploration projects involving granite, basalt and other highly abrasive bedrock, ordinary drilling tools need frequent replacement, while qualified diamond core bits can sustain continuous operation, reducing frequent tool change interruptions on site. Custom-manufactured domestic diamond core bits further optimize the matrix formula and diamond arrangement to adapt to extreme underground environments.

This type of drilling tool achieves a high rock core recovery rate thanks to its stable annular cutting mode. Instead of striking and smashing rock, it uses slow, uniform grinding to cut around the rock core. Gentle cutting force avoids violent vibration that cracks loose rock samples. Complete rock cores preserve original stratification, crack distribution and mineral combination status underground. Geological researchers rely on these intact samples to judge stratum age, fault distribution and resource storage conditions. If rock cores are broken severely during sampling, critical geological information will be lost, which may lead to wrong evaluation of underground resources and hidden risks for subsequent engineering construction.

Strong adaptability to extreme working conditions is another vital performance advantage of diamond core bits. Custom domestic models can resist ambient temperatures up to 241°C and withstand pressure equivalent to 80,000 atmospheres. Deep underground, temperature and pressure rise rapidly with drilling depth. Ordinary cutting tools will experience thermal deformation, material softening and structural failure under such harsh conditions. The optimized matrix alloy and stable diamond composite layer of high-end diamond core bits can resist thermal impact and high-pressure extrusion. Whether for deep continental scientific drilling, deep oil and gas exploration wells, or deep geothermal resource investigation, these bits can maintain reliable working status where conventional tools fail to operate normally.

Typical Application Scenarios

Scientific drilling is one of the most important application fields for high-performance diamond core bits. China’s Songke No.2 Well reached a drilling depth of 7018 meters, aiming to carry out scientific research on continental Cretaceous strata. The project faced high temperature, hard rock and complex interbedded formations during coring. Traditional coring tools could not balance drilling efficiency and core integrity. Specially developed high-temperature resistant diamond core bits solved the technical bottleneck of high-quality coring under ultra-deep high-temperature conditions. Complete continuous rock cores obtained from the well provided precious first-hand data for global paleoclimate and geological evolution research. Similar scientific drilling projects around the world all depend on customized diamond core bits to fulfill ultra-deep sampling targets.

Energy resource exploration widely applies diamond core bits for hard formation coring tasks. The Deep Di Tac No.1 Well represents China’s frontier exploration toward ten-thousand-meter deep strata. The well encounters multiple sets of dense hard rock formations in the deep section. Drilling equipment needs to obtain rock core samples to analyze reservoir characteristics, rock mechanical properties and resource potential. Common drill bits wear too quickly and cannot guarantee intact sampling. Targeted improved diamond core bits break through previous deep drilling restrictions, support stable coring operations in ten-thousand-meter-level deep wells, and push forward the exploration of deep oil, gas and geothermal energy resources. As countries increase investment in deep earth resource development, demand for high-spec diamond core bits for energy wells keeps rising year by year.

Engineering geological investigation employs diamond core bits on a large scale in infrastructure construction projects. Water conservancy and hydropower projects need to evaluate rock stability for dam foundations; railway and bridge construction requires sampling along planned routes to judge foundation bearing capacity; urban subway, high-rise building and underground utility tunnel construction all rely on geological core samples. Construction teams use diamond core bits to drill sampling boreholes on site. Collected rock cores help engineers confirm fault zones, groundwater distribution and soil-rock composition. Accurate geological survey based on intact rock cores avoids foundation collapse, water seepage and other safety accidents in later construction, laying a solid foundation for safe and stable infrastructure projects.

Technical Advantages

Wireline coring matching diamond core bits enables continuous coring without pulling out the whole drill string. In traditional coring operations, once a section of rock core is collected, workers must lift the entire drill pipe assembly out of the borehole, take out the core, then lower the drill string down again to restart drilling. Repeated tripping consumes massive manpower and wastes plenty of time, especially for deep boreholes. The wireline system sends a retrieval tool down through the inside of the drill pipe to fetch the inner core barrel directly. Drilling work can resume rapidly after recovering rock samples. This technology greatly reduces labor intensity for field crews and significantly boosts overall average drilling efficiency.

Many specifications of diamond core bits support factory reconditioning and repeated use. After long-time service, the surface diamond grains gradually wear, leading to decreased drilling speed. Instead of being discarded directly, qualified core bits can be sent back to professional manufacturers. Manufacturers remove the worn working layer, re-inlay new diamond cutting units and restore the outer size and structural precision. After professional repair, the working performance approaches that of brand-new bits. Compared with purchasing new tools every time, reconditioning cuts down repeated procurement expenditure. For exploration teams undertaking long-term continuous drilling tasks, this feature effectively lowers comprehensive operation costs throughout the project cycle.

Summary

In general, the diamond core bit is irreplaceable specialized equipment for acquiring intact underground rock cores, supported by mature theories and manufacturing technology. Distinguished classification systems meet variable demands from shallow engineering survey to ultra-deep scientific and energy drilling. Excellent wear resistance, high core recovery rate and extreme condition adaptability lay solid performance foundations for various complex drilling projects. Unique technical highlights including wireline coring compatibility and recyclable reconditioning further improve economic benefits for users. As deep earth exploration develops continuously, diamond core bits will keep playing a core role in scientific research, energy exploitation and infrastructure geological investigation, and continuous material and structural upgrades will further expand its applicable boundary in deeper, hotter and harder underground formations.
