sds max demolition hammer

sds max demolition hammer

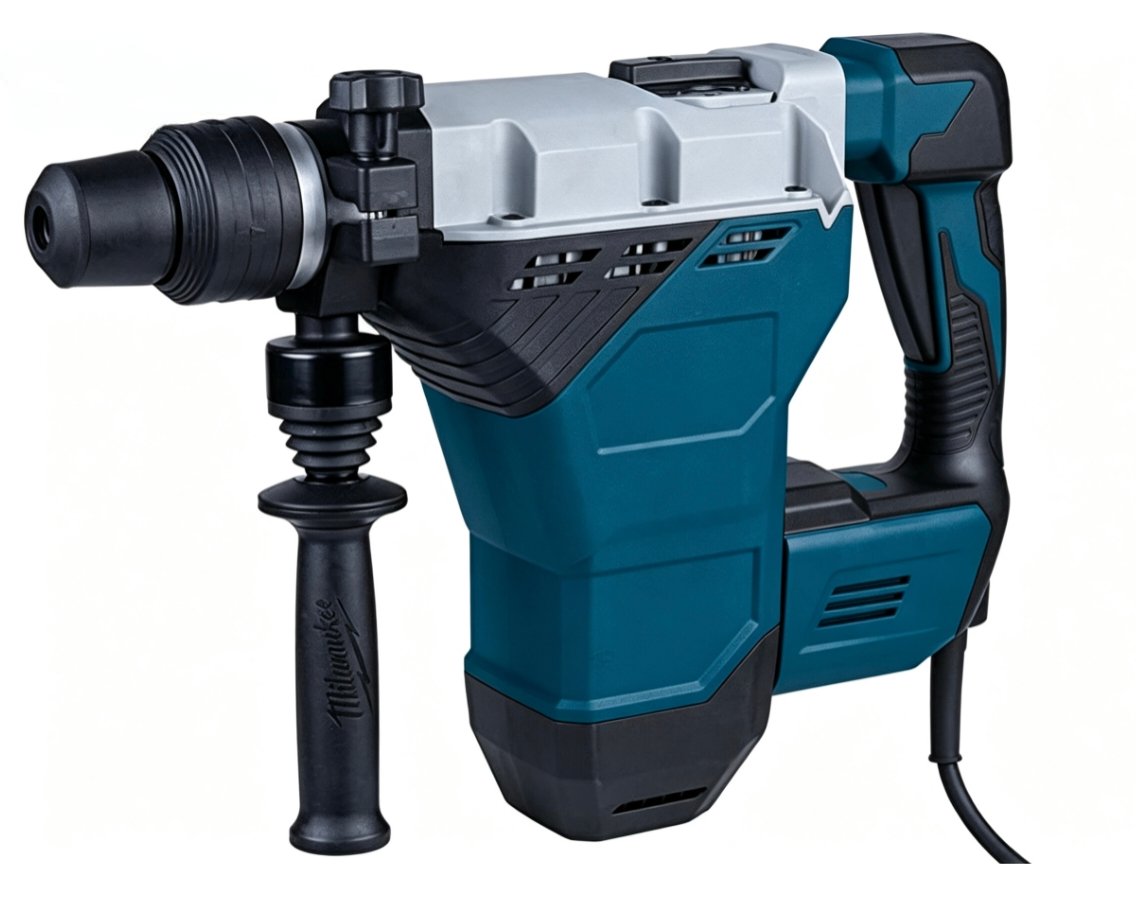

An SDS Max demolition hammer is a heavy-duty professional electric breaker with the unique five-groove SDS Max quick-change chuck system. It is designed to withstand long-term, high-intensity industrial dismantling tasks and is an indispensable heavy-load power tool that is frequently used in infrastructure engineering projects, building demolition, and interior renovation.

Basic Definition

The standardized SDS Max five-slot rapid locking chuck structure serves as the primary connecting mechanism for an SDS Max demolition hammer, a grade-one heavy-duty demolition power instrument. It is very different from small SDS Plus rotary hammers that are used for light chiseling and domestic drilling since it totally forgoes rotational drilling operations and only produces a strong single impact force intended to break hard building materials. In order to adapt to continuous heavy-duty working conditions that standard light electric tools cannot support, its internal impact assembly and structural strength are specifically improved.

The SDS Max interface, a unified international quick-change standard with five concave grooves on the shank that match the chuck lock and produce a tighter and more solid gripping structure than smaller tool interfaces, is the primary identifier for this kind of demolition hammer. The machine shell, internal piston cylinder, and transmission components are all upgraded in material thickness and wear resistance to withstand harsh construction environments full of dust, vibration, and high pressure because it is marketed as industrial-grade equipment rather than do-it-yourself decoration tools.

SDS Max demolition hammers are considered a typical configuration for medium- and large-scale dismantling projects in the construction industry. By simultaneously balancing operational flexibility and breaking force, it can independently finish the majority of rough demolition operations without the need for larger hydraulic breakers or human equipment. For engineering teams working on pipeline construction, road trimming, and historic building renovation, it has emerged as the go-to heavy electric demolition equipment.

Core Performance Characteristics

In order to ensure adequate striking force against thick concrete and solid brick structures, wired mainstream SDS Max demolition hammer models are outfitted with drive motors whose rated input power ranges from 1200 watts to 1500 watts. These motors deliver impact energy starting at 12 joules. Advanced lithium battery groups are used in some high-end cordless battery-powered models, and their single impact energy can reach 8.1 joules, sufficient to perform the majority of medium-strength chiseling and dismantling jobs even in the absence of a fixed mains power supply. After several hours of continuous heavy-load usage, the tool won’t see noticeable power attenuation thanks to the steady power output.

The most notable feature is the integrated SDS Max quick-change chuck system, which makes it possible to disassemble and install drill bits and chisels without the need for locking wrenches or screwdrivers. The five-groove meshing structure securely secures the shank to prevent slippage, shaking, or unintentional ejection after severe impact, and operators just need to pull the chuck’s outer locking ring to insert or remove the working accessory in a matter of seconds. This design increases the overall continuity and efficiency of construction work while significantly reducing the amount of time needed to replace various chisel bits on the job site.

The body structure of regular SDS Max demolition hammers fully incorporates humanized ergonomic design. The chisel head may be fixed at the ideal angle for narrow-area excavation and corner cleaning thanks to the machine’s preset 12 changeable chiseling angle positions. To accommodate activities on walls, floors, and ceilings from any position, the auxiliary side handle may complete a 360-degree rotation around the cylinder. Even throughout a full day of nonstop building work, arm numbness and physical exhaustion are successfully reduced by the integrated active vibration reduction structure, which filters the majority of high-frequency vibration transferred to the handles.

Typical Application Scenarios

On building and repair sites, SDS Max demolition hammers are most frequently utilized for the extensive deconstruction of brick masonry constructions and concrete walls. It can chisel away thick concrete base layers, dismantle unnecessary partition walls, and remove a lot of wall and floor tiles along with the underlying cement mortar all at once. When dealing with large-scale renovation projects, it can complete surface cleaning and material removal considerably faster than tiny electric equipment, significantly accelerating the reconstruction of old houses and space transformation.

During beautification projects, this tool is also frequently used to carve apertures and grooves in walls and floors for the embedding of wire boxes, electrical conduits, and water pipes. Its adjustable impact strength keeps excessive force from harming the building’s main load-bearing structure, and its replacement special grooving chisel, when paired with the SDS Max interface, can create standard pipeline trenches without the need for frequent trimming. When renovating residential and commercial spaces, it can accommodate nearly all traditional pipeline layout and wall alteration requirements.

Many of the new cordless SDS Max demolition hammer models are part of the Nuron battery platform ecosystem, which allows for flexible operation on construction sites where industrial sockets are either unavailable or difficult to access. The battery pack can be shared among multiple same-series power tools. The machine can achieve low-dust demolition, which lowers flying concrete dust on the site, safeguards the operator’s respiratory health, and satisfies the environmental and dust control standards of standardized construction sites when coupled to a supporting external dust collection system.

Unique Advantages of the SDS Max Interface System

The SDS Max five-groove interface is specifically designed for long-term high-frequency heavy impact because it has a much greater load-bearing capability than the two-groove and four-groove tiny chuck standards. Instantaneous impact pressure is dispersed by the numerous points of contact between the chuck and the accessory shank, preventing localized stress concentration that could lead to the tool shank shattering or deforming under heavy pounding. In long-term industrial use, this structural characteristic significantly increases the connection longevity between the main machine and chisel bits.

The SDS Max system is compatible with a full range of auxiliary tools, including as spade picks, U-shaped grooving bits, flat wide shovel chisels, and pointed breaking chisels. To transition between breaking, shoveling, grooving, and digging tasks without having to buy tools with multiple interfaces, construction workers merely need to set up a set of SDS Max standard fittings.

Additionally, the universal specification makes it very simple to purchase new spare parts from tool suppliers and hardware stores in all regions.Wear-resistant steel balls and compression springs integrated into the SDS Max chuck’s locking mechanism provide steady gripping force even after thousands of rapid disassembly and replacement cycles. It does not experience the loose locking that frequently develops on basic quick-clamp structures with prolonged vibration. The total safety level of field demolition operations is increased by this dependable locking performance, which lowers the possibility of the chisel flying out unintentionally during operation.
