Angle Die Grinder

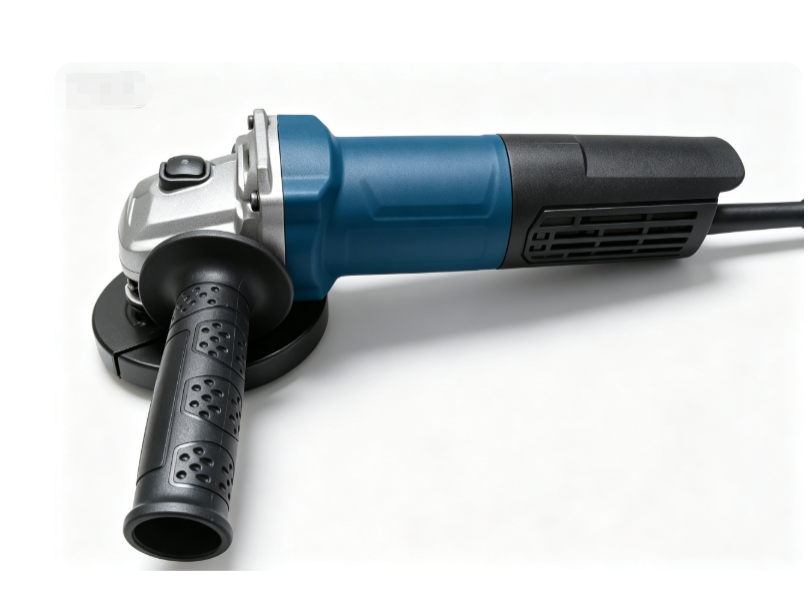

What is an Angle Die Grinder? An angle die grinder is a precision L-shaped handheld grinding tool evolved on the basis of the straight die grinder series. Featuring a 90-degree vertical angle between the spindle and the main body, it is uniquely designed to handle side surfaces, corner gaps and confined working areas that straight die grinders cannot access efficiently. As a professional refined finishing power tool, it is widely adopted in mechanical maintenance, mold modification and high-precision hardware surface processing scenarios for targeted trimming and polishing work.

What Are the Core Structural Advantages and Ergonomic Design Features of an Angle Die Grinder?

The angle die grinder adopts a unique integrated L-shaped curved structure, with the output spindle forming a perfect right angle with the longitudinal grip body. This distinctive structural layout completely changes the linear working trajectory of straight die grinders, enabling the tool head to face vertical side walls, flat side surfaces and right-angle corners directly. When processing side features of workpieces, operators do not need to twist their wrists or adjust the whole body posture drastically to fit the machining angle. The bent head design naturally matches vertical side grinding operations, greatly simplifying the operation posture and making vertical surface deburring and corner trimming more convenient and accurate than straight models.

The tool’s grip section is optimized with a humanized contour design that closely fits the natural grasping posture of the human palm. During high-speed rotating operation, power tools inevitably generate continuous vibration, which can easily cause hand numbness and fatigue after long-term holding. The ergonomic grip of the angle die grinder can effectively buffer and absorb most high-frequency vibration transmitted from the internal power assembly. Meanwhile, the optimized structural partition can isolate low-temperature conduction generated by internal component operation, preventing cold stimulation to the operator’s hands during long-time working. This comprehensive optimization greatly improves handheld comfort and allows operators to maintain stable working efficiency during long-duration continuous finishing tasks.

The whole angle die grinder adopts a modular assembly structure, which brings extremely convenient daily maintenance and accessory replacement experience. The internal power components, external shell and collet components are designed in a standardized split structure without complex integrated locking settings. When replacing worn grinding heads and polishing accessories, operators can complete disassembly and replacement in a short time with the matching standard tools. In daily maintenance work, residual metal debris and dust accumulated inside the tool head and gaps can be quickly cleaned through simple partial disassembly. The simplified structural design reduces the threshold of daily maintenance, ensures long-term stable operation of the equipment, and effectively extends the overall service life of the tool.

What Are the Core Power Configurations and Standard Performance Parameters of an Angle Die Grinder?

Angle die grinders are dominated by pneumatic power configurations in industrial applications, which can perfectly adapt to standardized industrial air supply systems. Most mainstream pneumatic angle die grinders are designed to match a standard industrial air pressure of 90psig, equivalent to 6.2bar, which covers the air supply parameters of most factory workshop pneumatic pipelines. With stable air source input, the tool can output consistent rotating speed and grinding torque without power attenuation or speed fluctuation. In addition to pneumatic models, upgraded electric versions are equipped with multi-speed adjustment functions, allowing operators to freely switch high, medium and low gears according to workpiece material hardness, whether for rough grinding of hard metal or fine polishing of soft surfaces, achieving targeted processing effects for diverse materials.

Conventional angle die grinders have a standardized no-load speed range of 20,000 to 27,000 revolutions per minute, forming a high-speed and stable working state suitable for fine finishing. This moderate high-speed design balances grinding efficiency and processing accuracy, avoiding rough surface traces caused by low-speed heavy grinding and workpiece burn caused by excessive ultra-high speed. It is crucial to follow air pressure specifications during operation; connecting an air source exceeding 90psig will cause the tool’s rotating speed to surge beyond the safe threshold. Excessive overspeed operation will greatly increase the tension and centrifugal force of the grinding head, easily leading to grinding head fragmentation and splashing, which poses serious safety threats to on-site operators.

The tool’s collet structure has unified standardized installation specifications to ensure firm clamping and safe operation of various finishing accessories. The universal collet can adapt to grinding heads and polishing tools with different shank diameters, meeting the replacement needs of coarse grinding, fine polishing and trimming accessories. During accessory installation, operational specifications require the grinding head shank to be inserted into the collet for at least 10 millimeters of effective clamping depth before tightening the collet nut completely. Insufficient insertion depth will lead to insufficient clamping force, causing the grinding head to shake during high-speed rotation. In severe cases, the grinding head may detach and fly out during operation, directly triggering safety accidents and affecting processing stability.

What Are the Core Functional Orientations and Applicable Working Scenarios of an Angle Die Grinder?

Angle die grinders excel at vertical side surface grinding operations that straight grinding tools struggle to complete accurately. In mechanical part processing and mold manufacturing, many workpieces have vertical side walls, mold parting surfaces and equipment shell right-angle edges. Straight die grinders can only work in linear trajectories, making it difficult to form vertical and effective fitting with side surfaces, resulting in incomplete grinding and uneven trimming. The 90-degree bent head of the angle die grinder can be vertically aligned with the workpiece side surface, achieving comprehensive and uniform deburring, surface shaping and fine polishing. It effectively solves the problem of incomplete finishing of vertical side features and improves the overall flatness of workpiece side surfaces.

The compact bent-head structure enables the angle die grinder to penetrate ultra-narrow confined spaces for in-depth cleaning and finishing work. Many mechanical equipment interiors, assembly gaps and casting side cavities have extremely narrow operating spaces, which cannot accommodate the straight long body of conventional straight die grinders and angle grinders. The small and flexible bent head of the angle die grinder can easily extend into these hidden gaps and closed narrow areas. It can thoroughly clean residual welding slag, oxide layers and casting burrs left in confined spaces, realizing dead-angle-free finishing for complex structural workpieces and making up for the structural limitations of traditional grinding tools in narrow-space operation.

With the working characteristics of high rotating speed and low torque output, the angle die grinder can achieve precise control of grinding volume and is suitable for high-precision fine shaping tasks. Different from heavy-duty grinding tools with high torque and large material removal capacity, it features delicate and controllable cutting force during operation. Operators can accurately grasp the grinding depth and trimming range, which is very suitable for fine chamfering of precision hardware parts and local trimming of weld residual height. It will not cause excessive material removal or surface damage due to excessive grinding force, ensuring precise workpiece size and smooth and delicate surface texture after finishing.

What Are the Standard Safety Operation and Daily Maintenance Specifications for an Angle Die Grinder?

Scientific starting and contact operation methods are the basis for avoiding grinding head damage and workpiece surface defects. When using a cold grinding head that has not been preheated for the first time, operators should not directly apply heavy pressure or impact the workpiece violently. Instead, the grinding head should be slowly and lightly attached to the workpiece surface, allowing the friction temperature of the grinding head to rise gradually and the abrasive layer to enter a stable working state. After the tool runs smoothly and fits the workpiece evenly, formal constant-speed grinding operation can be carried out. Violent impact and forced pressing will cause instantaneous uneven force on the cold grinding head, easily leading to abrasive peeling, local cracking and irregular scratches on the workpiece surface.

Comprehensive pre-operation safety inspection must be implemented strictly before each startup to eliminate overspeed and shedding risks. Operators need to confirm that the collet nut is fully locked and the grinding head has no shaking or loosening. Meanwhile, it is necessary to check the rated safe speed of the matched grinding head accessories. When the grinding head shank extends too long outside the collet, its overall structural stability will decrease, and the safe speed threshold will drop significantly. In this case, the operating speed must be reduced appropriately according to the actual extension length to avoid safety accidents such as grinding head fragmentation caused by overspeed operation. Standard speed matching and locking inspection can effectively guarantee the safety and stability of high-speed finishing work.

Targeted daily lubrication and maintenance can effectively prolong the service life of pneumatic angle die grinders and maintain stable power output. For mainstream pneumatic models, it is recommended to inject about 0.5cc of special pneumatic tool lubricating oil before each use. The lubricating oil can fully lubricate the internal rotor, bearing and transmission components, reduce friction loss during high-speed operation, and avoid component wear and power jitter caused by long-term dry friction. Adhering to standardized lubrication maintenance can keep the internal pneumatic components in an optimal working state for a long time, reduce failure rates, and greatly extend the overall service cycle of the angle die grinder.

Summary

In conclusion, the angle die grinder is a specialized L-shaped precision finishing tool derived from straight die grinder equipment, with a 90-degree spindle structure that uniquely adapts to corner, side and narrow-space processing scenarios. It features ergonomic vibration reduction design, modular easy-maintenance structure, standardized pneumatic and electric power configurations, and safe and stable speed and clamping parameters. It is irreplaceable in vertical side polishing, confined space cleaning and high-precision workpiece shaping, making it a key tool for mold processing, mechanical maintenance and hardware fine finishing. By strictly abiding by pre-start safety inspection, standardized contact operation and professional daily lubrication maintenance rules, operators can give full play to its precise and flexible processing advantages while ensuring long-term safe and stable operation of the equipment.
