Carbon Brush Set

Carbon Brush Set

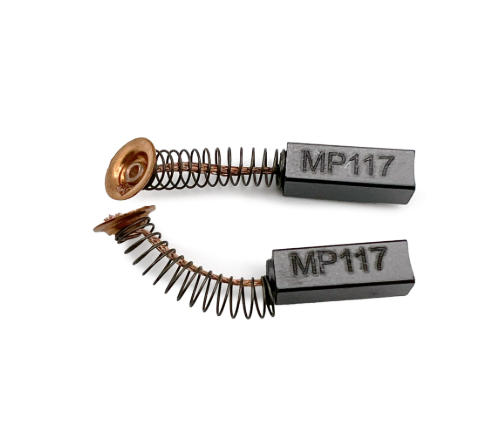

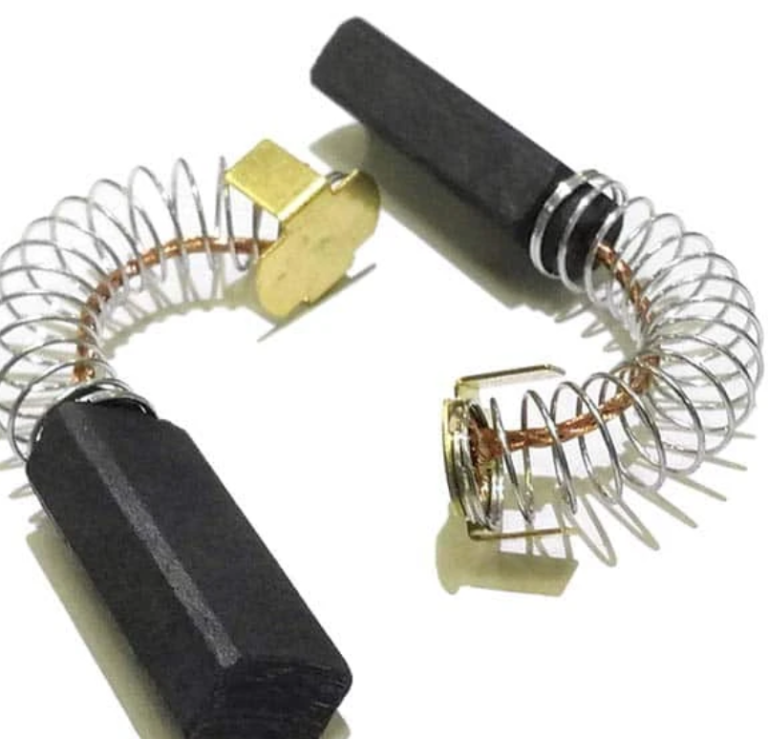

A carbon brush set is a complete assembly of sliding conductive parts composed of multiple matched carbon brushes and supporting accessories such as tension springs and brush holders. Serving as a unified wearable replacement kit, it is tailor-made for specific rotating electrical equipment including electric motors and power tools. Unlike loose individual carbon brushes, this integrated set provides fully matched components, enabling convenient and standardized replacement for daily equipment maintenance and repair work.

What is the basic definition and structural composition of a carbon brush set?

A standard carbon brush set is a complete supporting component package designed for targeted electrical equipment, rather than a single independent carbon brush. In most cases, it contains two or more carbon brushes of identical specifications that perfectly fit a specific motor model. These matched brushes are produced in the same batch with unified material density, hardness and conductive performance, ensuring consistent working effect after installation. This integrated design avoids performance differences caused by mixing individual brushes from different batches.

In addition to the core carbon brush bodies, a complete carbon brush set is equipped with all necessary auxiliary installation accessories. The standard supporting parts include tension compression springs and fixed brush holder brackets, which work together to ensure stable contact and flexible sliding of the carbon brushes. Some upgraded sets also come with professional cleaning tools and detailed installation guides. These complete supporting configurations allow users to finish replacement work directly without purchasing scattered accessories separately, greatly improving maintenance efficiency.

The most prominent design feature of a formal carbon brush set is its unified calibration of all performance parameters. All parts in the set, including brush size, spring tension force and electrical conduction indicators, are strictly calibrated according to the original equipment standards. When the original carbon brushes of the motor are worn out and fail to work properly, the entire set can be directly used for integral replacement. No manual debugging, parameter adjustment or adaptive modification is required during installation, which perfectly restores the original operating state of the electrical equipment.

What are the mainstream types and applicable scenarios of carbon brush sets?

Household appliance carbon brush sets are specially customized for civilian electrical equipment, with fixed classic specifications that fit mainstream home appliance motors. The typical size of 5×12.5×35mm is a widely universal specification, perfectly matching the drum washing machine motors of Siemens and other mainstream European brands produced between 2005 and 2018. This type of household carbon brush set features stable conductivity, low noise and mild wear, fully adapting to the long-term stable operation needs of household electrical equipment, and has become one of the most common replacement kits for family appliance maintenance in European and global civilian markets.

Power tool carbon brush sets are optimized for high-speed, frequent start-stop working scenarios of handheld electric tools. The classic 5×10×17mm specification is highly compatible with mainstream angle grinder models such as Bosch GWS 1000 and GWS 8-115. This professional kit adopts straight lead wires and copper spring contact structures, which are completely consistent with the original factory accessory standards. It can directly replace worn and failed original carbon brushes, effectively restoring the cutting and polishing power of angle grinders, and is widely used in daily hardware processing and construction maintenance work.

Industrial-grade carbon brush assemblies are designed for heavy-duty industrial power equipment and slip ring transmission systems. With a rated voltage of 220V and a rated working current of 5A, these sets can stably adapt to high-power variable-frequency operating conditions that civilian kits cannot bear. They feature strong current carrying capacity, high temperature resistance and durable wear resistance, capable of maintaining stable conductive performance during long-term high-load industrial operation. They are core replacement accessories for large industrial mechanical transmission and power supply systems.

Universal industrial carbon brush sets are versatile general-purpose kits suitable for most conventional industrial equipment. Adopting medium-hard brush material and a three-channel conductive structure, this series of products has extremely wide compatibility. It can meet the daily replacement and maintenance needs of most common industrial equipment in various regions and factories. With balanced comprehensive performance and strong adaptability, it solves the problem of difficult matching of special accessories for conventional industrial equipment, reducing equipment maintenance costs and spare part inventory pressure.

What core selection principles should be followed for carbon brush sets?

Accurate dimensional matching is the primary and most critical principle for selecting a qualified carbon brush set. The length, width and height of the brush body must fully conform to the original factory parameters of the equipment. Even tiny dimensional deviations will affect the flexible sliding state of the carbon brush inside the brush holder. Excessively large sizes will cause jamming and inflexible movement, while slightly small sizes will lead to loose installation and poor contact. These abnormal conditions will directly cause motor sparking, local overheating and unstable operation during equipment operation.

Consistent spring tension is essential to ensure uniform operation of the entire motor system. The spring tension of the new carbon brush set must be consistent with the tension standard of the original supporting kit. If the tension of a single spring is too high or too low, the corresponding carbon brush will bear abnormal load pressure. Uneven tension will lead to inconsistent contact tightness of multiple carbon brushes, resulting in uneven current distribution. Long-term operation under unbalanced current will cause partial overheating of the motor and accelerate abnormal wear of individual brushes.

It is necessary to use complete and matched brushes from the same set for single equipment replacement. Carbon brushes from different production batches or different kits have subtle differences in material formula, hardness and conductivity. Mixing different batches of carbon brushes on the same motor will lead to inconsistent working performance of each brush. This mismatch will cause disordered current transmission, unstable motor operation and even frequent sparking faults. Using a complete unified carbon brush set ensures synchronous and consistent working state of all conductive components.

What typical equipment symptoms indicate the need for carbon brush set replacement?

Declined motor torque and insufficient power output are the most intuitive early signs of carbon brush set aging and wear. After long-term operation, the carbon brushes will be gradually worn shorter, leading to insufficient spring compression pressure and poor contact. The equipment cannot obtain stable and sufficient current support, resulting in obvious weakness during startup and operation, and the load-bearing capacity of the motor is significantly reduced. Once this power attenuation phenomenon occurs, it indicates that the carbon brush set has reached the service limit and needs timely replacement.

Abnormal operating noise and unstable rotating speed are also typical fault manifestations of worn carbon brush sets. When the carbon brushes are severely worn, the contact between the brush body and the commutator becomes unstable, accompanied by intermittent poor contact and slight vibration. This will cause the motor to produce harsh friction noise and jitter during operation, and the rotating speed will fluctuate abnormally and fail to maintain constant-speed operation. These abnormal working states will further aggravate equipment loss if not repaired in time.

Frequent electric sparking inside the motor is a typical dangerous warning signal of expired carbon brush sets. Severe wear, deviation and poor contact of carbon brushes will cause gaps in the conductive contact surface. High-speed rotating operation will produce continuous electric sparks, which not only accelerate the wear of the commutator and internal components, but also bring potential safety hazards. Replacing the entire carbon brush set in time can quickly eliminate these faults, restore stable current conduction, and make the motor return to normal working condition efficiently.

Summary

In short, a carbon brush set is a complete matched wearable assembly integrating carbon brushes, tension springs, brush holders and installation accessories, specially used for the replacement and maintenance of rotating electrical equipment such as various motors and power tools. It covers household appliance types, power tool types, professional industrial-grade and universal industrial types, accurately adapting to civilian daily use and heavy industrial working scenarios. Correct selection must strictly follow dimensional matching, consistent spring tension and unified batch use standards. When the equipment shows insufficient torque, abnormal noise, unstable speed and frequent sparking, replacing the complete carbon brush set in a timely manner can efficiently repair faults, restore equipment performance and ensure the safe and stable operation of various electrical equipment.
