Motor Carbon Brush

Motor Carbon Brush

A motor carbon brush is a core sliding contact component installed inside all brushed motors, responsible for transferring electric current between stationary and rotating motor parts. As a vital wearable part, it stabilizes motor commutation and guarantees continuous, reliable operation of various electric motors and generators in industrial, transportation and civilian electrical equipment.

What are the basic definition and internal composition of motor carbon brushes?

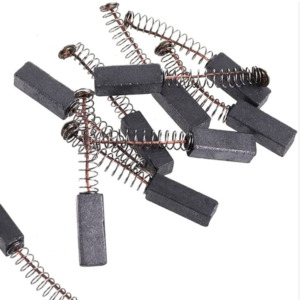

A motor carbon brush is a general term for specialized carbon contact parts exclusively designed for rotating electrical equipment such as electric motors and generators. Most motor carbon brushes feature a standard block-shaped structure with an outgoing wire attached to the top. Unlike fixed electrical connectors, these brushes rely on consistent spring pressure to cling tightly to the surface of motor commutators and slip rings. This unique contact method allows stable current transmission even during high-speed motor rotation, solving the conduction limitations of rigid fixed wiring in rotating machinery.

The overall structural design of motor carbon brushes is tailored to adapt to the complex operating environment of running motors. The block-shaped outline fits perfectly with standard brush holders of various motor models, enabling flexible assembly and replacement. The top lead wire serves as a fixed current transmission terminal, connecting the brush body to the motor’s internal circuit system. This mature structural form has become the universal standard for civilian and industrial motor carbon brushes after long-term technical iteration and practical verification.

Motor carbon brushes adopt a scientific composite material formula with graphite as the core base material. To enhance conductive performance, fine metal powders such as copper and silver are uniformly mixed into the graphite substrate, greatly improving current transmission efficiency. Meanwhile, high-strength adhesives are added to the material formula to integrate all raw materials into a solid whole. This reinforced structural strength prevents the brush body from cracking, decomposing or deforming under the dual effects of high-speed centrifugal force and continuous friction during long-term motor operation.

What core functional roles do motor carbon brushes perform in electric machines?

Motor carbon brushes undertake the fundamental task of transmitting input working current for motor operation. They stably deliver external excitation current from the stationary motor circuit to the rotating rotor windings. Without this conduction function, the rotating part of the motor cannot obtain continuous power support, and the entire motor will fail to operate normally. This basic power transmission capability is the most essential and core function of motor carbon brushes.

These carbon brush components also play a key role in releasing static charge accumulation inside the motor. During high-speed operation, the motor shaft will continuously generate and accumulate static electricity due to mechanical friction and electromagnetic induction. The carbon brush can guide these accumulated static charges from the motor shaft to the ground, eliminating static buildup thoroughly. This function effectively prevents static corrosion, circuit breakdown and component damage caused by static discharge, protecting the internal electrical structure of the motor.

Realizing orderly current commutation is another indispensable core function of motor carbon brushes, especially for commutator-type DC motors. In coordination with the motor commutator, carbon brushes actively change the current direction inside the rotor coils during rotation. This directional current adjustment ensures that the motor can maintain consistent unidirectional rotation instead of stalling or reversing randomly. Stable commutation performance directly determines the smooth operation and working efficiency of brushed motors.

In addition to power conduction and static protection, motor carbon brushes also support real-time operational status monitoring of electrical equipment. They can extract the potential signal of the motor shaft and transmit it to professional protection and detection devices. This enables accurate rotor grounding fault detection and positive and negative ground voltage measurement for the motor system. It provides reliable data support for equipment fault early warning and daily operational safety monitoring.

What are the mainstream classifications and matching application scenarios of motor carbon brushes?

Metal graphite motor carbon brushes are mainly made of electrolytic copper powder and graphite composite materials, boasting extremely excellent electrical conductivity and high current carrying capacity. This type of brush is specially designed for low-voltage and high-load motor equipment, with the most typical application being automotive starter motors. To ensure operational safety and stability, metal graphite carbon brushes have a strict speed limit, with a maximum allowable circumferential operating speed of no more than 30 meters per second, avoiding structural damage caused by excessive high-speed rotation.

Natural graphite carbon brushes feature outstanding lubricating performance and stable current collection capability. Their low friction coefficient and smooth sliding characteristics make them ideal for medium and small DC motors that require stable and quiet operation. They are also widely matched with slip ring systems of high-speed turbo generators in power industry equipment. This type of carbon brush causes minimal wear on motor accessories and runs smoothly for a long time, fully meeting the continuous and stable operation requirements of power generation equipment.

Electro-graphite carbon brushes are manufactured through ultra-high temperature sintering treatment at 2500 degrees Celsius, forming a stable and dense internal material structure. They excel in motor commutation performance and self-lubricating ability, with strong comprehensive adaptability. This universal brush type can be applied to almost all conventional AC and DC motors. It not only has a long service life itself but also produces extremely low wear on the motor commutator, effectively reducing motor maintenance frequency and replacement costs.

According to specific equipment usage scenarios, motor carbon brushes can be further subdivided into professional customized models for different industrial equipment. The mainstream specialized categories include carbon brushes for turbo generators, steel rolling motors, railway traction motors, ordinary AC motors and aviation motors. Each customized brush is optimized in material ratio, structural hardness and conductive performance according to the operating intensity, speed and load characteristics of specific equipment, achieving the best matching operating effect.

What core installation and operational standards must be followed for motor carbon brushes?

Precise gap control is the basic premise for the normal operation of motor carbon brushes. After being installed into the brush holder, the carbon brush must maintain flexible vertical sliding capability without jamming or stagnation. The gap between the brush body and the inner wall of the brush holder needs to be strictly controlled between 0.1 and 0.3 millimeters to reserve a reasonable sliding space. Meanwhile, the distance between the bottom edge of the brush holder and the commutator surface should be kept at about 2 millimeters, which can effectively avoid friction collision while ensuring stable contact conduction.

Uniform spring pressure is crucial to prevent motor overheating and sparking faults. All carbon brushes installed on a single motor must maintain consistent unit spring pressure. Uneven pressure will lead to inconsistent contact tightness of each brush, resulting in uneven current distribution during operation. This abnormal condition will cause local overheating, electric spark discharge and accelerated partial wear. For motors operating in high-speed or strong vibration working conditions, appropriately increasing the spring pressure can ensure stable contact and avoid poor conduction caused by vibration separation.

Unified model matching is a key rule for motor carbon brush assembly. In principle, all carbon brushes used on the same motor must be of the same model and specification to ensure consistent conductive performance, hardness and wear resistance. Only for large and medium-sized motors with extremely high commutation difficulty can the special dual-brush configuration be adopted to optimize operating status. This standardized matching method effectively avoids operational instability caused by mismatched brush performance.

What daily maintenance guidelines apply to motor carbon brushes?

Regular sliding flexibility inspection is the first step of daily carbon brush maintenance. Maintenance personnel need to regularly check whether the carbon brushes slide smoothly inside the brush box, and timely troubleshoot and solve common problems such as brush jamming and stuck movement. At the same time, the tightness and uniformity of the spring pressure should be checked regularly to eliminate hidden dangers of poor contact caused by spring fatigue and uneven pressure.

Real-time wear monitoring and timely replacement are essential to ensure continuous motor operation. Staff need to regularly observe the wear degree of carbon brushes during daily inspections. Once the brush wears down to the reserved service life marking line, it must be replaced immediately. Continuing to use overly worn carbon brushes will lead to insufficient contact pressure, unstable current conduction, frequent sparking and even irreversible damage to the motor commutator.

Regular cleaning and temperature detection can effectively extend the service life of motor carbon brushes and motors. It is necessary to regularly clean carbon deposits, oil stains and dust accumulated on the commutator surface to prevent conductive blockage and poor contact. In addition, the operating temperature of brush holders and slip rings should be monitored regularly. Excessive operating temperature will accelerate brush aging and material deterioration, so timely heat dissipation and fault troubleshooting are required to avoid equipment failure caused by overheating.

Summary

In summary, motor carbon brushes are block-shaped conductive wearable components composed of graphite, metal powder and adhesives, which rely on spring pressure to achieve stable sliding conduction inside brushed motors. They undertake core functions such as current transmission, static release, current commutation and equipment status monitoring. Classified into metal graphite, natural graphite and electro-graphite types, as well as specialized models for different equipment, they adapt to diverse industrial and civilian motor operating scenarios. Standardized gap control, uniform pressure configuration and unified model matching are essential installation requirements, while regular flexibility inspection, wear monitoring and dirt cleaning constitute complete daily maintenance specifications. Standard installation and scientific maintenance can effectively stabilize motor operating performance, reduce failure rates and extend the overall service life of electrical equipment.
