Straight Die Grinder

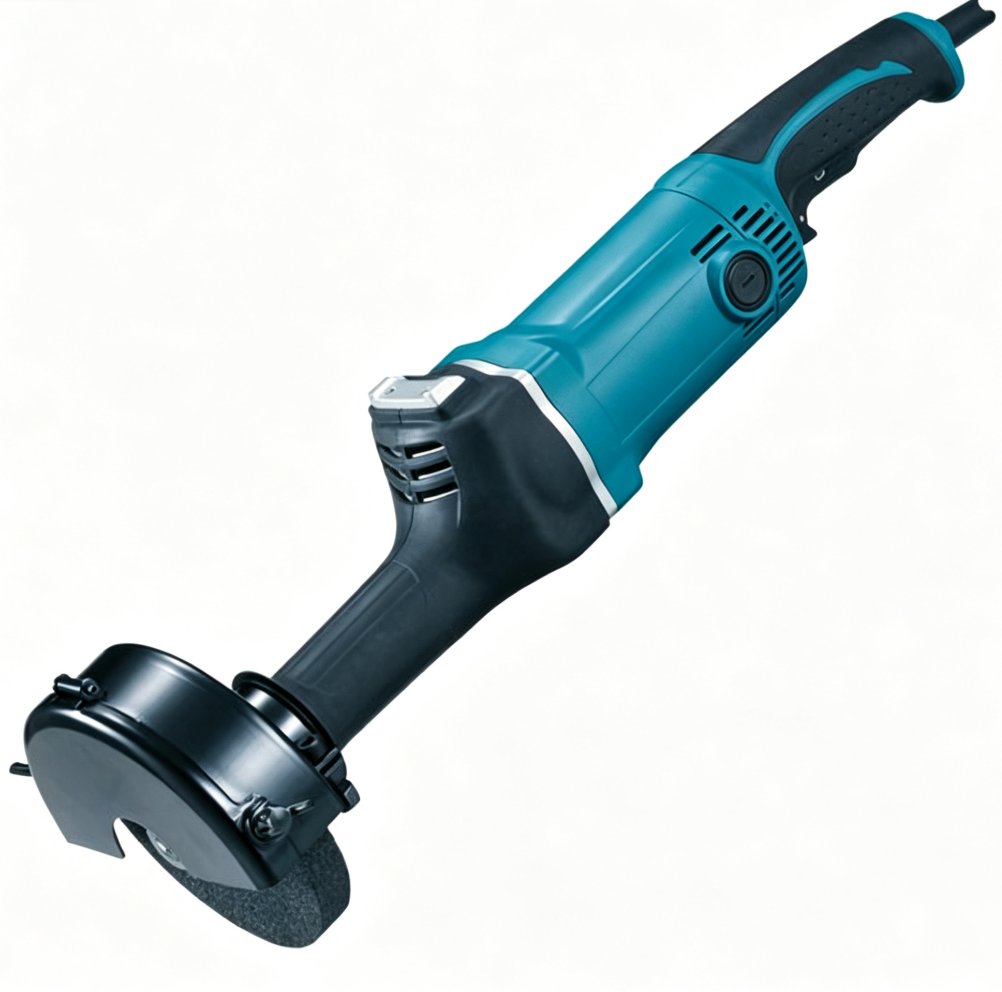

What is a Straight Die Grinder? A straight die grinder is a high-speed handheld precision grinding tool featuring a straight cylindrical body structure. Unlike the L-shaped bent design of traditional angle grinders, it is professionally engineered for detailed shaping, fine polishing and residual material cleaning in confined and narrow spaces, making it a widely used precision tool in mold processing, mechanical maintenance and high-precision metal finishing industries.

What Are the Core Structure and Power Type Characteristics of a Straight Die Grinder?

The straight die grinder adopts an integrated straight cylindrical body design, with the main spindle completely coaxial and parallel to the machine shell, forming a streamlined linear structure that distinguishes it from other grinding tools. The front end of the fuselage is equipped with a standard collet interface, which can flexibly install and match various specifications of grinding heads, small grinding wheels and polishing wheels according to different processing needs. This diversified accessory compatibility enables the equipment to switch freely between grinding, trimming and polishing functions. The extended straight body structure is the core advantage of the die grinder, allowing the tool head to penetrate deep into deep holes, narrow gaps, inner cavities and hidden gaps that ordinary angle grinders cannot reach, realizing all-round dead-angle-free processing.

Pneumatic straight die grinders are powered by industrial compressed air, featuring motor-free structural design and zero thermal attenuation during long-term continuous operation. Without built-in electric motors, the equipment will not generate coil heating or power decline even after long hours of high-frequency work, maintaining extremely stable output status. The no-load speed of mainstream pneumatic models ranges from 7,000 to 30,000 revolutions per minute, with a maximum output power reaching 1kW. The ultra-high stable rotating speed provides delicate and uniform cutting force, which is very suitable for high-standard fine polishing and precise surface finishing tasks, and is deeply favored by industrial precision processing scenarios that require long-term uninterrupted operation.

Lithium-ion battery powered straight die grinders are equipped with high-performance brushless motors, completely getting rid of the space limitations of air pipes and power cords. This wireless design greatly improves the flexibility and portability of field operation, enabling free mobile construction in outdoor sites, open spaces and areas without industrial air sources or power supplies. The typical output power of mainstream lithium electric models is about 0.5 horsepower, equipped with multi-speed adjustment functions. Operators can freely switch the rotating speed according to workpiece material hardness and processing accuracy requirements, adapting to coarse grinding of hard metal materials and fine polishing of soft surface coatings. It fills the application gap of pneumatic die grinders in outdoor and mobile operation scenarios.

What Are the Core Functions and Typical Application Scenarios of a Straight Die Grinder?

Straight die grinders excel in precision shaping and subtle trimming of high-precision workpieces, solving the operation interference problems that plague traditional grinding tools. In mold processing and precision parts manufacturing, the tool can finely repair tiny textures on mold cavity surfaces, remove sharp burrs on metal part edges and precisely polish excess weld height after welding. Benefiting from the straight coaxial structure, the operator can completely control the grinding track and processing range during operation. Unlike angle grinders that are prone to shell collision and angle interference in narrow spaces, the straight die grinder can fit small-area precision processing surfaces perfectly, ensuring accurate processing size and uniform surface texture.

Deep hole and narrow gap cleaning is another irreplaceable core function of straight die grinders. Many mechanical parts, castings and pipeline components have complex internal structures such as deep inner holes, narrow assembly gaps and closed inner cavities. Ordinary handheld grinding tools are restricted by their bent structures and cannot extend into these hidden positions for construction. The straight die grinder’s slender linear body can easily go deep into the interior of special workpieces, completing inner wall polishing, residual oxide cleaning and inner cavity burr removal. It effectively solves the processing dead-angle problem in traditional technology and improves the overall finishing completeness of mechanical workpieces.

Equipped with different precision accessories, straight die grinders can achieve high-standard fine polishing and mirror surface pretreatment, with processing accuracy far exceeding conventional angle grinding equipment. By matching fine-grained grinding heads and wool polishing wheels, the tool can perform gradual fine grinding and surface modification on metal workpieces. It can effectively eliminate subtle tool marks and grinding traces left by preliminary rough processing, creating smooth and delicate metal surfaces. This precise finishing capability is widely used in hardware product finishing, stainless steel mirror treatment and precision mechanical parts surface optimization, providing reliable technical support for high-quality workpiece surface molding.

What Are the Key Performance Parameters of a Straight Die Grinder?

Straight die grinders have a wide speed range covering diverse processing demands of different materials and working intensities. Most conventional precision models maintain a high no-load speed between 20,000 and 30,000 revolutions per minute, relying on high-speed fine cutting to achieve smooth polishing effects without scratching the workpiece surface. In addition, targeted low-speed heavy-duty models are designed for high-hardness metal grinding and thick residue removal, with a stable operating speed of about 7,000 revolutions per minute. The low-speed and high-torque performance ensures sufficient grinding force for heavy material removal, forming a complete speed gradient that covers light fine polishing and heavy coarse grinding scenarios.

The power output parameters of mainstream straight die grinders fully meet the needs of industrial high-intensity operation, with the maximum power range stably covering 0.5kW to 1kW. For pneumatic models, the air consumption under maximum load working conditions is maintained at 9.6 to 22L per second, which is highly compatible with the 6.3bar standard air pressure of conventional industrial air compression systems. It can operate stably in factory standardized air supply environments without additional pressure stabilization and flow expansion equipment, ensuring continuous and stable power output during batch processing. The reasonable power parameter design balances equipment energy consumption and working efficiency, adapting to long-term industrial intensive operation.

All qualified formal straight die grinders comply with the ISO 11148-9 international power tool safety standard, with standardized structural design and safety performance. Among them, the upgraded oil-free lubrication models optimize the internal pneumatic operation structure, eliminating the need for regular manual oil injection maintenance. This design not only simplifies daily maintenance steps and reduces later use costs but also avoids workpiece pollution caused by lubricating oil leakage during operation. While ensuring safe and stable operation of the equipment, it greatly improves the convenience of daily use and maintenance.

What Are the Standard Safety Operation and Maintenance Specifications for a Straight Die Grinder?

Standard personal protective measures must be implemented throughout the entire operation process to avoid accidental injury caused by high-speed tool operation. The grinding head of a straight die grinder runs at an ultra-high speed during work, and defective or improperly installed grinding heads are prone to fragmentation and high-speed splashing. Operators must wear professional safety goggles and dust masks throughout the whole process to block flying hard debris and fine grinding dust. Comprehensive facial and respiratory protection can effectively avoid eye impact injury and long-term inhalation of harmful particulate matter, ensuring personal safety during high-precision grinding and polishing operations.

Strict installation inspection and standardized operation posture are essential to eliminate equipment failure risks. After installing the grinding head, the operator must confirm that the collet is completely locked without looseness to prevent the grinding head from falling off during high-speed rotation. Before formal processing, the equipment needs to run idle for 30 seconds to check for abnormal vibration, jitter and abnormal noise, and operation can only be started after confirming stable equipment operation. During working, the fuselage must be held steadily for uniform and linear grinding. Forced pressing, prying and twisting of the grinding head are strictly prohibited, as excessive external force will cause stress concentration on the grinding head, leading to fracture and flying accidents.

Scientific classified maintenance according to different power types can effectively extend the service life of straight die grinders and maintain stable working performance. For pneumatic models, before each air source connection, it is necessary to check the water content and impurity content of the input air source to prevent water vapor and dirt from entering the internal pneumatic components, which would cause component corrosion and power attenuation. For lithium-ion electric models, during long-term idle storage, the battery power should be maintained at about 50% and placed in a dry and ventilated environment to avoid battery aging and damage caused by over-discharge or over-charge. In daily use, the dust and debris accumulated in the heat dissipation holes should be cleaned regularly to ensure smooth heat dissipation and prevent motor burnout caused by long-term heat accumulation.

Summary

To sum up, the straight die grinder is a professional high-speed precision handheld grinding tool defined by its straight coaxial cylindrical structure, making up for the structural limitations of traditional angle grinders in narrow-space fine processing. It is available in pneumatic and lithium-electric power versions, with diversified speed and power parameters covering light fine polishing and heavy-duty coarse grinding scenarios. Relying on its unique deep penetration performance and precise processing capability, it is widely used in mold trimming, metal deburring, inner cavity cleaning and high-precision surface finishing. In actual use, strict personal protection, standardized installation and operation, and classified scientific maintenance must be followed to ensure long-term safe, stable and efficient operation of the equipment, serving as an indispensable core precision tool for modern mechanical processing and industrial finishing.
