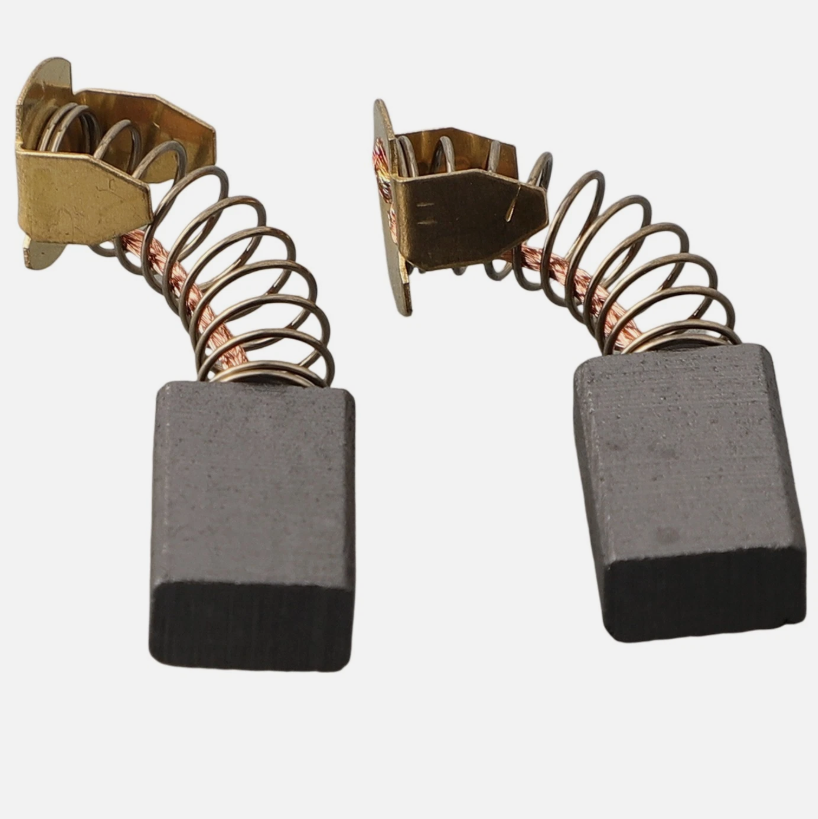

A carbon brush for electric tool is an essential wearable conductive component built into the motors of all handheld brushed power tools, which directly governs the operational stability, working efficiency and overall service lifespan of electric power equipment.

What are the core practical functions of electric tool carbon brushes?

An electric tool carbon brush delivers stable and continuous electric current transmission to support the normal operation of various handheld power equipment. During tool operation, the carbon brush maintains consistent sliding contact with the rotating motor commutator, steadily transferring electric energy from the power source to the internal rotor windings. This uninterrupted power supply forms a complete motor circuit, providing stable power output to drive the normal operation of common tools such as electric hammers, electric drills and angle grinders, and enabling various cutting, drilling and impact construction tasks.

Electric tool carbon brushes provide reliable wear resistance and protective effects for precision motor components thanks to the natural properties of graphite materials. The high-purity graphite used in these brushes comes with inherent self-lubricating characteristics during sliding friction. Serving as a sacrificial wearable part, the carbon brush wears down gradually on its own during long-term operation, which effectively prevents hard and rigid friction from scratching or damaging the high-cost copper commutator inside the motor.

This targeted protective mechanism avoids premature abrasion, surface ablation and structural damage to the precision commutator, which is one of the most expensive core components of a brushed motor. Instead of replacing the entire motor due to minor commutator damage caused by poor friction conditions, users only need to replace low-cost carbon brushes. This feature greatly reduces daily motor maintenance expenses and equipment repair thresholds for both household and professional users.

Matched supporting springs enable electric tool carbon brushes to adapt perfectly to high-vibration working conditions unique to power tools. Handheld electric tools produce continuous high-frequency vibration and mechanical jitter during drilling, grinding and impact work, which easily causes loose contact between internal components. The supporting spring can automatically compensate for pressure loss as the carbon brush gradually wears thinner.

This dynamic pressure compensation system ensures the carbon brush always fits tightly and evenly against the commutator surface throughout its service life. It effectively eliminates unstable contact gaps caused by vibration and wear, maintains consistent conductive efficiency in harsh working environments, and guarantees continuous and stable power output of electric tools during high-intensity operation.

What are the common classifications and material characteristics of electric tool carbon brushes?

Electric tool carbon brushes are mainly divided into two core categories to adapt to different load intensities and usage scenarios, including ordinary graphite carbon brushes and metal graphite carbon brushes. Each type features exclusive material formulas and performance positioning to match graded equipment demands. Ordinary graphite carbon brushes are designed for low-load and intermittent household use scenarios, focusing on stable basic conductivity and low-noise operation to meet daily DIY maintenance and light construction needs of household electric tools.

In contrast, metal graphite carbon brushes are professional upgraded accessories customized for high-power industrial-grade electric tools. By adding metal powder into the graphite base material, this type of carbon brush greatly improves overall current carrying capacity and structural durability. It can withstand instantaneous large current impact and long-term heavy-load operation, perfectly adapting to the high-intensity working mode of professional construction tools that run continuously on job sites.

Natural graphite and artificial graphite are the two most fundamental and widely used raw materials for manufacturing electric tool carbon brushes. Natural graphite features excellent natural lubricity and stable friction performance, ensuring smooth sliding contact and low wear rate during daily operation. Artificial graphite has more uniform material density and stable chemical properties, with stronger high-temperature resistance and structural stability, suitable for long-term repeated startup and operation of electric tools.

For heavy-duty high-current working scenarios, manufacturers add refined copper powder to the graphite composite formula. The copper component significantly enhances the electrical conductivity and instantaneous overload resistance of the carbon brush, solving the problems of insufficient power and easy heating of ordinary carbon brushes under large current loads. This optimized material ratio balances wear resistance and conductive performance, realizing targeted matching for different working intensities.

Electric tool carbon brushes have formed unified and mature universal size specifications that cover most mainstream handheld equipment on the market. The two most representative standard dimensions are 5×8×12mm and 6×6×20mm, which are precisely designed according to the common brush holder structure and motor assembly parameters of mainstream electric tools. These two universal sizes can adapt to more than 90 percent of conventional handheld power tools, achieving high compatibility and versatile replacement effects.

The popularization of unified general specifications greatly simplifies the accessory selection and replacement process for users. There is no need to select exclusive customized carbon brushes according to tool brands and models, which effectively avoids matching errors and procurement troubles. The standardized size design realizes universal interchangeability of accessories and becomes the mainstream specification for daily electric tool maintenance and replacement.

What are the service life standards and replacement judgment criteria for electric tool carbon brushes?

The actual service life of electric tool carbon brushes varies greatly depending on usage frequency, load intensity and working environment. Under ordinary household light-load usage conditions with intermittent operation and short working cycles, a new set of standard carbon brushes can achieve a cumulative service life of 200 to 300 working hours. This service cycle fully meets the sporadic renovation, maintenance and light construction needs of ordinary family users, with low replacement frequency and convenient daily use.

However, in professional construction site environments with long-duration continuous operation and frequent heavy-load impact, the wear speed of carbon brushes is significantly accelerated. Sustained high current, violent vibration and continuous friction will rapidly consume the carbon brush material, leading to a shortened overall service life. Under such high-frequency professional working conditions, users need to pay closer attention to carbon brush wear status and conduct regular inspections to avoid equipment failure caused by excessive wear.

There are obvious and intuitive operating fault signals that serve as effective reminders for timely carbon brush replacement. When the electric tool produces a large number of irregular bright sparks during operation, it indicates unstable contact and severe wear of the carbon brush. Meanwhile, obvious power attenuation, insufficient drilling torque and slow operating speed under load are typical manifestations of failed current conduction caused by aging carbon brushes.

In addition, when the remaining length of the carbon brush is less than one-third of its original size, the contact pressure and conductive area can no longer meet normal operating standards. Users must stop using the equipment and replace the carbon brush in a timely manner to prevent further commutator abrasion and motor performance degradation.

Scientific and regular internal maintenance can effectively extend the service life of electric tool carbon brushes. It is standardized to clean the accumulated carbon powder inside the motor every 50 working hours. A large amount of fine carbon dust will be generated during the friction between the carbon brush and commutator, and long-term accumulation of these impurities inside the motor cabin may block the sliding gap of the carbon brush.

Excessive carbon deposition will cause poor carbon brush sliding, unbalanced contact and even local short-circuit risks, which will accelerate carbon brush wear and damage motor internal structures. Regular thorough cleaning can keep the motor interior unobstructed, maintain stable carbon brush operation, effectively reduce failure rates and significantly prolong the overall service cycle of carbon brushes and motors.

What are the standardized operation key points for electric tool carbon brush replacement?

Complete power cutoff is the most basic and critical safety prerequisite before carbon brush replacement. Before disassembling and maintaining any electric tool, users must thoroughly cut off all power sources by unplugging the power cord or removing the lithium battery pack. This step completely eliminates potential safety hazards such as accidental tool startup and electric shock caused by mistakenly touching the control switch during disassembly and installation, ensuring the entire maintenance process is safe and reliable.

Thorough internal cleaning is an essential step to guarantee the working performance of newly installed carbon brushes. After removing the worn old carbon brush, a large amount of accumulated carbon powder and tiny copper debris will remain inside the carbon brush cabin and brush holder channel. These residual impurities will hinder the free sliding of new carbon brushes, easily causing jamming, unsmooth movement and poor conductive contact after installation.

Using compressed air to thoroughly blow and clean the internal sundries can keep the brush holder track clean and unobstructed. Effective cleaning avoids abnormal sparking, local overheating and power instability caused by impurity blockage, creating a good operating environment for the stable operation of new carbon brushes.

Standardized trial operation and running-in treatment are required after completing carbon brush installation. After fixing the new carbon brush in place, users need to perform a 10-second no-load test run to observe whether the tool runs smoothly without abnormal noise or excessive sparking. This short-time test can initially verify the accuracy of installation and eliminate simple assembly faults.

In the first 10 to 15 minutes of formal use, it is recommended to operate the tool under reduced load for gradual running-in. The contact surface of a brand-new carbon brush has not fully fitted the radian of the motor commutator, and low-load operation helps the carbon brush surface wear evenly. This scientific running-in method enables the new carbon brush to form a precise and tight fit with the commutator, stabilizing current conduction and avoiding eccentric wear and local heating in subsequent long-term operation.

What are the mainstream usage precautions for electric tool carbon brushes?

Avoiding long-term continuous overload operation is the core rule to prolong the service life of electric tool carbon brushes. When electric tools work under excessive load for a long time, the motor needs to bear super-large current output, which will generate serious heat accumulation inside the carbon brush assembly. High-temperature ablation will cause rapid aging, material softening and burnout of the carbon brush, greatly shortening its service life and even causing instantaneous carbon brush failure during operation.

Reasonable control of operating load and timely rest of high-power tools after long-time work can effectively reduce carbon brush temperature rise and wear rate, maintaining the stable physical properties and conductive performance of the carbon brush for a long time.

Long-term use in harsh environments with high humidity and heavy dust should be strictly prohibited to avoid accelerated wear and electrical faults. Humid working environments will cause the carbon brush material to absorb moisture, reducing insulation performance and causing unstable current transmission. Meanwhile, dense dust particles will enter the motor interior with air flow, aggravating friction wear between the carbon brush and commutator and blocking internal conductive gaps.

Long-term harsh environmental operation will not only accelerate carbon brush aging and failure but also easily induce leakage, short circuit and other serious electrical faults, threatening equipment safety and user operation safety. Therefore, electric tools should be used in dry and clean working environments as much as possible.

Standard protective operation and standardized replacement specifications are also crucial to motor protection. When replacing carbon brushes, users need to wear professional insulating gloves to isolate residual charge inside the motor, effectively preventing electric shock risks caused by residual current. In addition, mixed use of different types and different material carbon brushes is strictly prohibited.

Carbon brushes with different material ratios and conductive parameters have obvious differences in resistance and wear performance. Mixed installation will lead to uneven current distribution, unbalanced motor operation, increased sparking and local overheating. In severe cases, it will cause irreversible damage to the motor armature and coil, resulting in permanent equipment failure.

Summary

To conclude, carbon brushes for electric tools are indispensable wearable conductive components that determine the stability and service life of handheld brushed power tools. They undertake stable current transmission, commutator wear protection and adaptive pressure compensation for high-vibration working conditions. Classified into ordinary graphite and metal graphite types with universal standard sizes, they adapt to household light-load and industrial heavy-load scenarios separately. Their service life varies with working intensity, and abnormal sparking and power attenuation are clear replacement warning signals. Regular carbon powder cleaning, standardized power-off replacement and scientific running-in operation can optimize tool performance. Meanwhile, avoiding overload operation and harsh environment use, as well as standardizing replacement behaviors, can effectively extend carbon brush service life and ensure long-term safe and stable operation of various electric tools.
