Carbon Brush

Carbon Brush

A carbon brush, also commonly known as an electric brush, is a critical sliding contact component used in all types of rotating electrical machinery. It serves the essential function of transferring electric current and electrical signals between stationary motor parts and rotating components. Featuring excellent electrical conductivity, thermal conductivity and natural self-lubricating properties, carbon brushes are irreplaceable core accessories for all brushed motor equipment in industrial, transportation and household electrical fields.

What is the basic definition and historical development of carbon brushes?

A carbon brush is a specialized electrical contact component mainly made of carbon-based composite materials. Its common raw materials include pure graphite, oil-impregnated graphite and metal graphite mixtures. Unlike fixed wiring connectors, carbon brushes rely on continuous spring pressure to closely attach to the surface of motor commutators or slip rings. This flexible contact method enables stable current transmission during high-speed mechanical rotation, solving the power supply problem of rotating electrical equipment that traditional fixed wires cannot achieve.

Carbon-based brush materials possess unique physical properties that make them uniquely suitable for motor sliding contact work. Carbon and graphite materials have moderate conductivity, good high-temperature resistance and excellent self-lubricating ability. They will not generate excessive friction heat during long-term high-speed sliding, nor will they easily wear down the metal surface of the commutator. This comprehensive material advantage makes carbon brushes the standard contact medium for modern brushed motors.

The electrical brush industry has undergone obvious iterative upgrades since the birth of DC motors. In 1836, when the first DC motor was invented, rigid copper brushes were used for current conduction. Copper brushes had strong conductivity but poor lubrication performance, causing severe wear, high heat generation and short motor service life. It was not until 1883 that the first carbon brush was successfully developed, greatly optimizing motor operating stability and wear resistance. After centuries of continuous improvement and material innovation, a complete and standardized electrical carbon product industrial system has been formed today.

What are the core structure and working principles of carbon brushes?

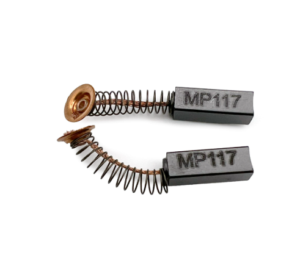

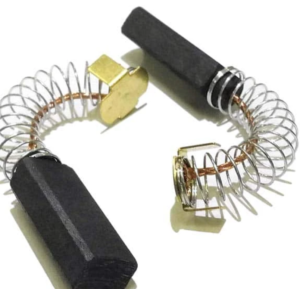

A complete carbon brush assembly consists of three core functional parts, ensuring stable power transmission and mechanical buffering. The main body is the solid carbon brush substrate responsible for direct contact and conduction. Embedded inside the substrate is a conductive copper braid, which undertakes the internal current transmission task of the brush body. Cooperating with the main body is an external spring pressure mechanism that provides lasting and stable pressing force. In formal motor assembly, matched brush holders and pressure spring accessories are also installed to fix the overall position of the carbon brush.

The working logic of carbon brushes relies on the combination of mechanical pressure and physical sliding conduction. The built-in spring mechanism continuously pushes the carbon brush body to fit tightly on the surface of the rotating commutator or slip ring. Even during high-speed rotation and slight mechanical vibration, the brush can always maintain close contact without gaps or separation. This stable fitting state ensures that current can be continuously and evenly transmitted from the stationary circuit to the rotating motor components.

One of the most valuable advantages of carbon brushes is their natural self-lubricating effect during operation. As the graphite-based brush body slides at high speed, tiny graphite particles will automatically separate and form an ultra-thin lubricating film on the metal contact surface. This protective film effectively reduces direct rigid friction between the carbon brush and the metal commutator. It not only lowers the operating friction coefficient and reduces equipment heat generation, but also greatly reduces wear on both the brush body and the motor commutator, extending the overall service life of the motor.

What are the mainstream types and applicable scenarios of carbon brushes?

Metal graphite carbon brushes are compound products formed by mixing metal powder such as copper or silver with graphite materials. Compared with pure graphite brushes, they have extremely strong electrical conductivity and larger current bearing capacity. This characteristic makes them very suitable for low-voltage, high-load motor equipment that requires instantaneous high current output. Common application scenarios include automobile starting motors and industrial slip ring transmission systems. High-quality metal graphite carbon brushes can work stably in extreme temperature environments ranging from -40℃ to +155℃, adapting to complex outdoor and vehicle operating conditions.

Natural graphite carbon brushes take high-purity natural graphite as the main raw material, focusing on outstanding surface lubrication performance and stable current collection capability. Their friction coefficient is extremely low during operation, which can effectively smooth the current transmission state and reduce motor jitter and spark generation. This type of carbon brush is mostly used in medium and small DC motors and high-speed turbo generator slip ring equipment. It is very suitable for long-term stable operation scenarios that require low wear and smooth power output.

Electro-graphite carbon brushes are manufactured through ultra-high temperature sintering treatment above 2500℃. After high-temperature purification and structural reorganization, the material obtains excellent commutation performance and enhanced self-lubricating properties. It causes almost no abrasive wear on the surface of the motor commutator and can maintain stable conduction quality under variable speed and variable load conditions. With strong comprehensive adaptability, it can be widely used in various AC and DC conventional motors, becoming the most versatile general-purpose carbon brush type in the industry.

Special industrial carbon brushes are customized high-performance products designed for extreme working conditions such as railway transit and oil field operations. Taking EMD railway locomotive carbon brushes as a typical example, this series of products can withstand a current density of 12A per square centimeter and adapt to a maximum operating speed of 1200 revolutions per minute. With a mechanical service life of up to 20,000 working cycles, it can stably support high-intensity, long-duration and high-load industrial operations, fully meeting the harsh durability requirements of heavy-duty professional equipment.

What key performance indicators determine carbon brush quality?

Conduction-related parameters are the core indicators that directly affect motor energy efficiency and operating stability. Resistivity determines the internal current transmission efficiency of the carbon brush. A reasonable low resistivity ensures smooth current passing and avoids excessive electrical loss. In contrast, overly high resistance will cause heat accumulation and power waste. The contact voltage drop reflects the voltage loss at the contact interface between the carbon brush and the commutator. Stable and low voltage drop can effectively prevent unstable motor speed, spark discharge and local overheating problems.

Wear-related indicators determine the service life of carbon brushes and the maintenance cycle of the entire motor system. The friction coefficient represents the friction resistance generated during relative sliding. A moderate and stable friction coefficient can balance conduction stability and wear degree. Excessively high friction will accelerate brush consumption and commutator wear, while overly low friction may cause poor contact and unstable current. The standard wear value detected under specified working conditions intuitively judges the durability of the carbon brush, guiding users to select suitable products for long-term continuous operation.

In what fields are carbon brushes widely applied?

Carbon brushes occupy an indispensable core position in heavy industrial production scenarios. They are standard matching parts for various large AC and DC generators, steel rolling mills, industrial cranes and other heavy motor equipment. These industrial devices require long-term high-load continuous operation, and high-performance carbon brushes ensure stable current transmission, reduce equipment failure rates, and guarantee the continuity and safety of factory production.

In the transportation industry, carbon brushes support the normal operation of various power traction equipment. Railway locomotive traction motors rely on high-strength industrial carbon brushes to complete high-power current conversion and transmission. Traditional fuel vehicle starting motors also use metal graphite carbon brushes to provide instantaneous starting current. Whether it is long-distance railway operation or daily vehicle starting, carbon brushes provide reliable power conduction guarantee for transportation equipment.

In civil and household scenarios, small carbon brushes are widely built into various portable electric tools and household appliances. Common equipment such as angle grinders, cutting machines, vacuum cleaners and hair dryers all use small brushed motors equipped with miniature carbon brushes. These small carbon brushes meet the high-speed and frequent start-stop working needs of household equipment, with low noise and stable performance, bringing reliable and durable use experience for daily home life.

Summary

To conclude, a carbon brush is a key sliding contact component responsible for current transmission in rotating electrical equipment, developed from early copper brushes to mature carbon-based electric contact products. Composed of carbon substrate, conductive copper braid and spring pressure mechanism, it realizes stable current conduction and self-lubricating protection through high-speed sliding contact. Classified into metal graphite, natural graphite, electro-graphite and special industrial models, different carbon brushes adapt to low-voltage high-load, high-speed stable operation and extreme industrial working conditions. Its performance is evaluated through conductive parameters and wear resistance indicators, covering industrial machinery, transportation equipment and household electrical appliances. Reasonable selection and matching of carbon brushes can effectively improve motor stability, reduce wear and extend the overall service life of electrical equipment.
