How do I know if carbon brushes need replacing?Users can accurately judge whether carbon brushes require replacement through intuitive visual inspection of physical conditions, real-time observation of motor operating states, and professional auxiliary performance testing, covering rigid dimensional standards, abnormal wear features, equipment operation anomalies and numerical parameter deviations to achieve comprehensive and accurate fault judgment.

Judgment Based on Direct Visual and Appearance Inspection

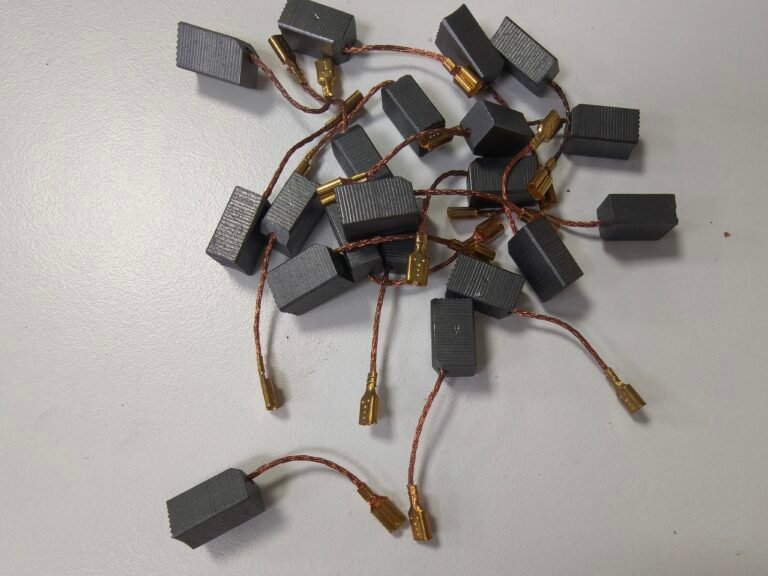

The most intuitive and rigid standard for carbon brush replacement is the residual physical length after long-term frictional wear, which provides a clear and unified judgment basis for daily maintenance. Every carbon brush leaves the factory with a fixed standard length designed to reserve sufficient wear allowance and ensure stable contact pressure and conductive performance throughout the service cycle. With continuous friction against the commutator during motor operation, the carbon brush will gradually wear shorter and lose its original dimensional parameters.

When the remaining length of a carbon brush is worn down to less than one-third of its original factory specification, it must be replaced immediately without exception. At this wear threshold, the carbon brush can no longer maintain stable elastic compression inside the brush holder. The spring’s compression stroke reaches the limit, resulting in insufficient contact force between the carbon brush and commutator. This condition will directly cause unstable current conduction, frequent commutation sparks and intermittent motor power failure, posing potential risks to equipment operation safety.

This length-based judgment rule applies to all types of brushed motors, including household electrical appliances, handheld power tools and industrial mechanical equipment. It serves as the most basic and non-negotiable maintenance standard, helping users eliminate subjective judgment errors and avoid equipment faults caused by excessive carbon brush wear.

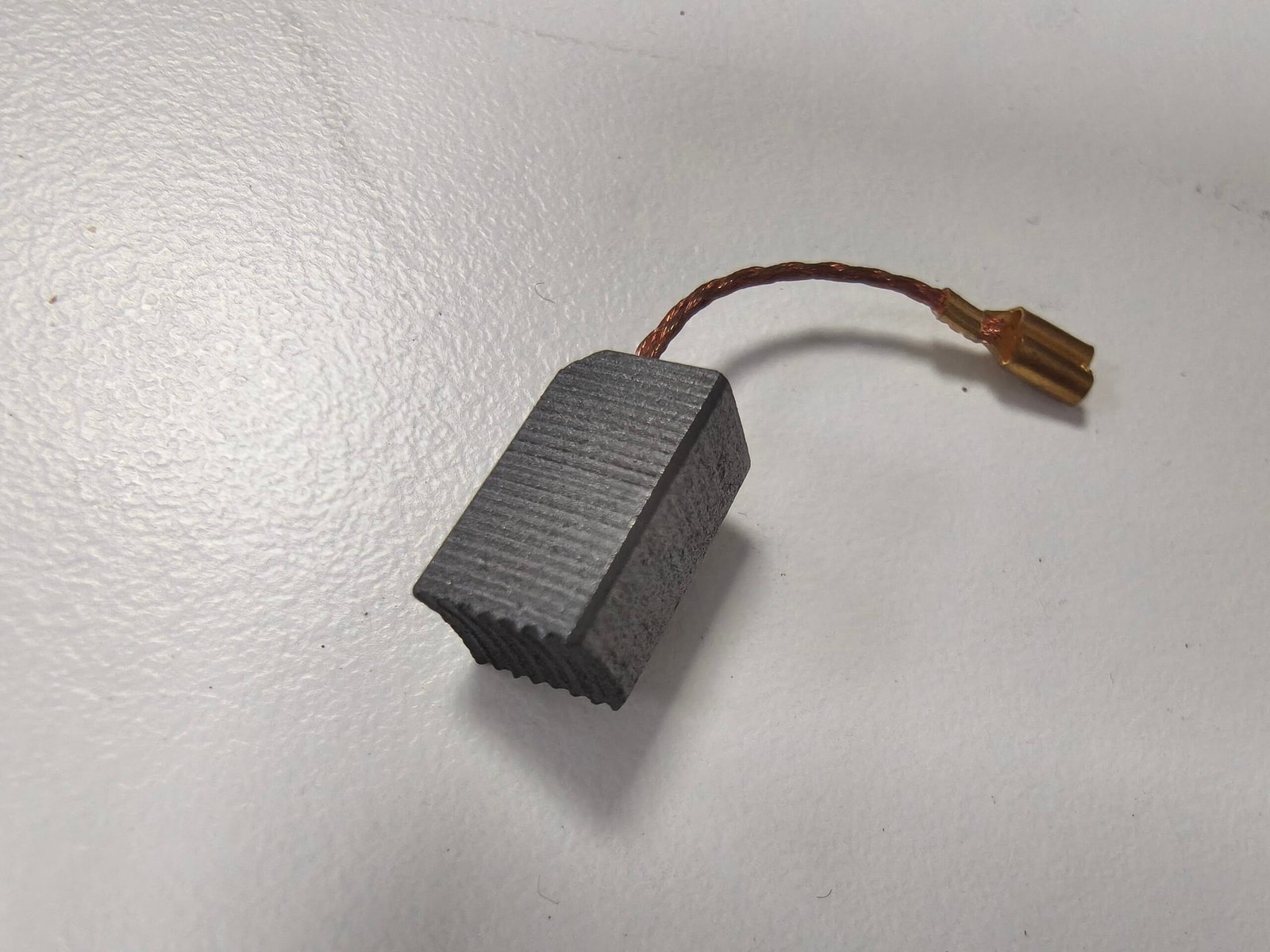

Apart from dimensional wear, the surface contact state of carbon brushes is another critical visual judgment factor, which can determine replacement demand even if the residual length is still sufficient. Qualified carbon brushes in normal working condition feature smooth, flat and intact working surfaces that can closely fit the radian of the commutator to form a stable conductive friction interface. After long-term operation or abnormal electrical ablation, the brush surface will develop various damaged features.

Severe ablation marks, dense pitting spots and local cracking on the carbon brush working face will completely destroy the original smooth contact structure. These surface defects will greatly increase contact resistance, disrupt uniform current transmission, and generate concentrated high temperature and electric arcs during operation. In addition, when the fitting degree between the carbon brush arc surface and the commutator drops below 70%, the effective conductive area is severely insufficient.

Even if the carbon brush still retains two-thirds or more of its original length, poor surface fitting will lead to unstable motor operation and accelerated commutator wear. In this case, continued use will only aggravate equipment loss and hidden dangers, so timely replacement is absolutely necessary to restore optimal motor working performance.

Abnormal irregular wear traces on carbon brushes are typical fault signals that require urgent replacement, reflecting abnormal mechanical fitting and electrical operation inside the motor. Normal carbon brush wear presents uniform and flat material loss across the entire contact surface, with consistent color and complete structural integrity. Once the motor suffers from installation deviation, unstable spring pressure or unbalanced current distribution, the carbon brush will develop atypical wear characteristics.

Unilateral eccentric wear is the most common abnormal phenomenon, where only one side of the carbon brush is severely worn while the other side remains intact, resulting in skewed contact posture during operation. Long-term eccentric friction will cause local overheating of the carbon brush, forming obvious discoloration and scorch marks on the surface. In more serious cases, the tail lead braid of the carbon brush will break or fall off due to vibration and tension loss.

These abnormal wear and structural damage features indicate that the carbon brush has completely failed to work normally. It can no longer provide stable current conduction and elastic contact, and will continuously trigger motor vibration, sparking and power instability. Maintenance personnel must stop the equipment for inspection and replace the faulty carbon brush in a timely manner to prevent secondary damage to the motor.

Judgment Based on Equipment Operating State Observation

Abnormal commutation sparking during motor operation is one of the most intuitive external manifestations of carbon brush failure, allowing users to quickly judge replacement demand through real-time observation. When carbon brushes are in good condition and fitted properly with the commutator, the current switching process is stable and smooth, producing only tiny, faint blue sparks that are almost invisible during normal operation. This slight spark phenomenon belongs to normal physical characteristics of brushed motors and does not affect equipment performance.

When carbon brushes wear excessively, suffer surface ablation or have insufficient contact pressure, the commutation state will deteriorate significantly. A large cluster of bright open flames and splashing sporadic sparks will appear continuously at the commutator position during motor operation. These intense sparks are far beyond the normal allowable range and represent abnormal electrical ablation.

Persistent severe sparking will further burn the carbon brush surface and commutator copper layer, forming a vicious cycle of ablation and performance deterioration. Once this abnormal spark state is observed, it can be accurately determined that the carbon brush performance has failed, and replacement must be arranged immediately to avoid permanent damage to the motor commutator and coils.

Obvious power attenuation of equipment under rated load is a core functional signal of aging and failed carbon brushes. Qualified carbon brushes with good conductivity and stable contact can ensure the motor outputs rated power steadily under full-load operation, maintaining sufficient torque and working efficiency. As carbon brushes wear and age, their internal conductivity decreases and contact resistance increases significantly.

Excessively high contact resistance will hinder stable current transmission, resulting in insufficient current input to the motor rotor. Under high-current and full-load working conditions, the equipment will show obvious weakness and insufficient power output, failing to reach the normal working speed and operating efficiency. After eliminating external factors such as unstable power supply and line faults, this power attenuation state is basically caused by carbon brush performance degradation.

This kind of functional failure will gradually worsen with extended operation. Delayed replacement will lead to long-term low-efficiency operation of the equipment, increased energy consumption, and even cause motor overload heating and circuit burnout in severe cases.

Abnormal operating noise and excessive local temperature rise are important auxiliary judgment indicators for carbon brush failure and aging. During stable operation of a healthy motor, the friction between carbon brushes and the commutator is smooth and uniform, producing only low and stable mechanical operating sound without abnormal vibration noise. When carbon brushes suffer eccentric wear, jamming or poor contact, high-frequency friction and tiny tremors will occur between the brush and commutator.

This abnormal mechanical movement will produce sharp high-frequency friction noise, which is obviously different from normal operating sound and easy to identify. Meanwhile, poor contact and increased resistance will cause continuous heat accumulation at the carbon brush installation position, leading to abnormal temperature rise of the local motor shell.

If the shell temperature near the carbon brush is significantly higher than other areas after a short period of operation, and surface discoloration and scorching traces are found on the carbon brush immediately after shutdown, it fully proves that the carbon brush has serious contact failure and overheating problems. Timely replacement is required to eliminate hidden operational troubles.

Judgment Based on Auxiliary Professional Performance Testing

Contact resistance testing through professional multimeters can accurately quantify carbon brush performance and judge whether replacement is needed, realizing data-based fault judgment. Each model of motor carbon brush has a factory-standard resistance range, which ensures stable current conduction and low-loss operation. With wear, aging and surface oxidation, the internal structure of the carbon brush changes, leading to a significant increase in contact resistance.

Maintenance personnel can measure the resistance value between the carbon brush lead wire and the motor rotor shaft with a multimeter. If the measured data far exceeds the original factory standard range of the equipment, it indicates that the carbon brush’s conductive performance has seriously deteriorated. Excessively high resistance will not only reduce motor operating efficiency, but also cause continuous heat accumulation and electrical spark faults.

This quantitative testing method can accurately identify hidden aging problems that cannot be found by visual observation and appearance judgment. It is very suitable for equipment daily maintenance and regular inspection, helping users replace aging carbon brushes in advance before obvious equipment faults occur.

No-load current testing is another effective professional means to evaluate carbon brush operating status and judge replacement requirements. The motor has a fixed rated no-load current value under normal working conditions, which is determined by the coil parameters and mechanical matching state. When the carbon brush is worn and fails, unstable contact and increased resistance will affect the motor’s current operating state.

During professional testing, if the actual measured no-load current is more than 20% higher than the factory rated value, and internal winding short circuits, aging and other coil faults are completely excluded, the abnormal current is mostly caused by carbon brush wear and poor contact. Increased no-load current means the motor consumes extra electric energy to overcome carbon brush contact resistance, accompanied by increased heat generation and reduced operating stability.

In this case, the motor needs to be disassembled and inspected in a timely manner to confirm the carbon brush wear state and complete replacement. This testing standard provides accurate data support for carbon brush replacement judgment, avoiding misjudgment caused by simple visual observation and experience.

Q&A Session

Q1: What is the most intuitive standard to judge carbon brush replacement?

The most intuitive and rigid standard is the residual length of the carbon brush. When the wear length is less than one-third of the original factory size, replacement must be carried out immediately. In addition, severe surface ablation, cracking and insufficient fitting degree with the commutator are also direct visual basis for mandatory replacement, regardless of the remaining length.

Q2: What motor operating phenomena indicate failed carbon brushes?

Typical abnormal phenomena include continuous bright splashing sparks at the commutator during operation, obvious power attenuation under full load, high-frequency friction noise caused by carbon brush vibration, and abnormal overheating of the local motor shell. These intuitive operating anomalies are typical early warning signals of carbon brush performance degradation and failure.

Q3: Why do we need professional testing to judge carbon brush status?

Visual observation and operating state judgment can only identify obvious carbon brush faults, while hidden aging and slight performance degradation are difficult to detect visually. Contact resistance and no-load current testing can quantify performance changes, accurately judge potential failures in advance, and avoid sudden equipment faults caused by neglected minor wear.

Q4: Is replacement required for carbon brushes with sufficient length but poor surface fitting?

Yes, replacement is necessary. Insufficient fitting degree below 70% will lead to insufficient conductive area, unstable current transmission and local overheating sparking. Even with enough residual length, poor contact state will damage the commutator and reduce motor efficiency, so timely replacement is essential to restore stable operation.

Summary

In conclusion, the demand for carbon brush replacement can be accurately judged through three systematic dimensions: visual appearance inspection, equipment operating state observation and professional performance testing. Appearance judgment focuses on residual length thresholds, surface contact integrity and abnormal wear traces, providing intuitive and rigid replacement standards. Operating state observation identifies carbon brush failure through abnormal sparking, power attenuation, strange noise and local overheating during motor operation. Professional testing relies on contact resistance and no-load current data to quantify performance degradation and discover hidden aging faults that cannot be observed visually. Combining these three judgment methods can effectively avoid misjudgment and missed inspection, help users replace failed carbon brushes in a timely and standardized manner, and maintain the long-term stable and efficient operation of various brushed motor equipment.
